| Brand Name: | ANGES |
| Model Number: | 440HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
What's an industrial process chiller?
An industrial process chillers are cooling device to remove heat generated from industrial manufacturing processes process. The chillers continuously output chilled water to have heat exchanger with the process or equipment. Industrial water chillers can keep your equipment at a safe operating temperature and cool your components during processes to ensure the highest quality final products and reduce production cycle time.Process chillers are different than standard HVAC that provide one or more of three basic functions of heat generation, ventilation, and air conditioning.
Which type of chiller are the most efficient?
Industrial process chillers can be air or water cooled, depending how the heat is rejected. Water-cooled screw chiller systems are especially used for large cooling loads, they have a cooling tower for refrigerant heat dissipation that higher efficiency than air-cooled chillers which use fans for refrigerant heat dissipation. It is perfect choice that use for process cooling for heat dissipation, more compact, less noisy, have longer operating than air cooled chillers.
Industrial process water chiller system including:
Water-cooled chiller
Cooling tower
Cooling pump
Insulated water storage tank

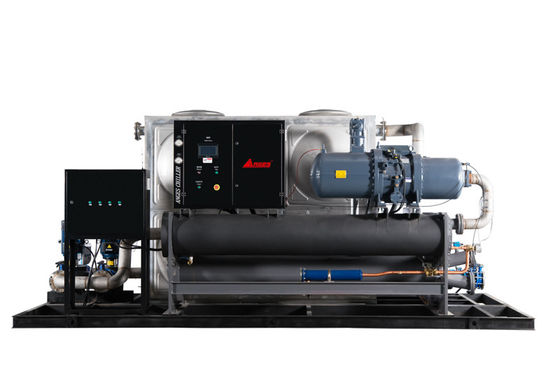

Water-cooled Process Chiller Specification
|
Model |
AGS-440WDH |
|
|
Nominal cooling capacity |
kcal/h |
1384600 |
|
|
kw |
1610 |
|
Input power |
kw |
311 |
|
Max running current |
A |
708.3 |
|
Power supply |
3PH-380V-50HZ |
|
|
Refrigerant |
Type |
R22 |
|
|
Type of control |
expansion valve |
|
Compressor |
Type |
semi-hermetic screw |
|
|
Power(kw) |
155.4×2 |
|
|
Start-up mode |
Y-△ |
|
|
Capacity control |
0-25-50-75-100 |
|
Evaporator |
Type |
shell and tube |
|
|
Chilled fluid flow (m3/h) |
276.9 |
|
|
Pipe diameter (inch) |
8 |
|
Condenser |
Type |
shell and tube |
|
|
Cooling water flow (m3/h) |
330 |
|
|
Pipe diameter (inch) |
6×2 |
|
Safety protection |
compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. |
|
|
Dimension |
mm |
4900*1600*2350 |
|
Net weight |
kg |
5920 |
|
Running weight |
kg |
6330 |
Water-cooled screw chiller featurers
Adopting high-efficiency and energy-saving compressors of world class grade brands, high-quality condensers and evaporators, high cooling efficiency, stable performance, low noise and long service life.
The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.
Screw compressor chiller capacity control can adopt four-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless control system.
High-efficiency internally threaded copper pipes enhance the heat transfer effect are more energy efficient.
The machine is all made of oshell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
Advantage of water cooling chiller
Energy Efficiency.Water-cooled chillers are generally more efficient than air-cooled chillers by using cooling water for heat dissipation from cooling tower.
Low noise.Water screw cooled chillers are quieter operation than air-cooled systems.
No open space needed.Water-cooled chillers no need to stay outdoors in an open space with plenty of fresh air to operate. The chillers installation can be indoor, which makes them ideal for companies that don't have enough outdoor space.
Lower operational costs and save time
Water chiller service from manufacturer
|
|
