| Brand Name: | ANGES |
| Model Number: | 240HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
|
Model Item |
AGS-240WDH | |
| nominal cooling capacity | kcal/h | 753188 |
| kw | 875.8 | |
| input power | kw | 176.5 |
| max running current | A | 402.5 |
| power supply | 3PH-380V-50HZ | |
| refrigerant | type | R22 |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| Power(kw) | 88.3×2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| evaporator | type | shell and tube |
| chilled fluid flow (m3/h) | 150.6 | |
| pipe diameter (inch) | 6 | |
| condenser | type | shell and tube |
| cooling water flow (m3/h) | 181 | |
| pipe diameter (inch) | 4×2 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| dimension | mm | 4150*1320*2150 |
| net weight | kg | 3920 |
| running weight | kg | 4330 |

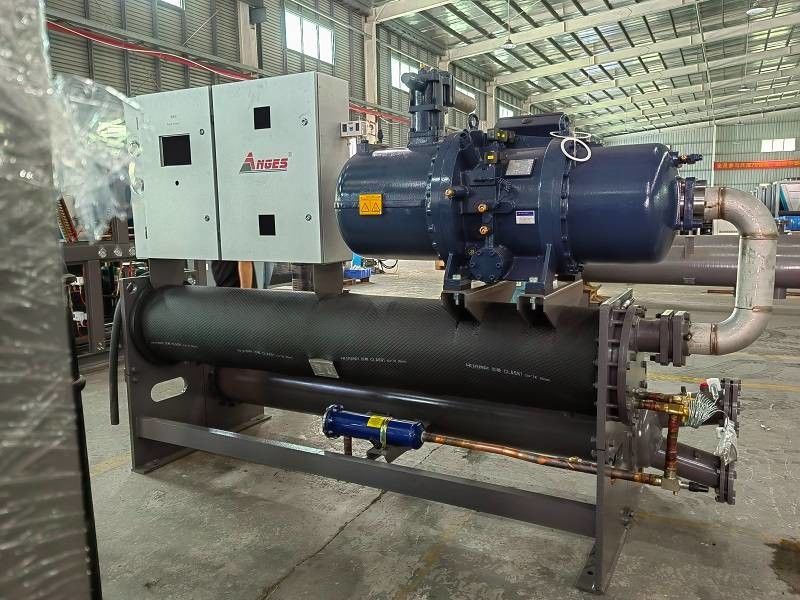

Water-cooled screw chiller featurers
1. Adopting high-efficiency and energy-saving compressors of world class grade brands, high-quality condensers and evaporators, high cooling efficiency, stable performance, low noise and long service life.
2. The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.
3. Screw compressor chiller capacity control can adopt four-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless control system.
4. High-efficiency internally threaded copper pipes enhance the heat transfer effect are more energy efficient.
5. The machine is all made of oshell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
Advantage of water cooling chiller
. Energy Efficiency.Water-cooled chillers are generally more efficient than air-cooled chillers by using cooling water for heat dissipation from cooling tower.
. Low noise.Water screw cooled chillers are quieter operation than air-cooled systems.
. No open space needed.Water-cooled chillers no need to stay outdoors in an open space with plenty of fresh air to operate. The chillers installation can be indoor, which makes them ideal for companies that don't have enough outdoor space.
. Lower operational costs and save time
Chiller service
1. All the chillers are provided with 12 months free maintenance service.
2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
|
|
