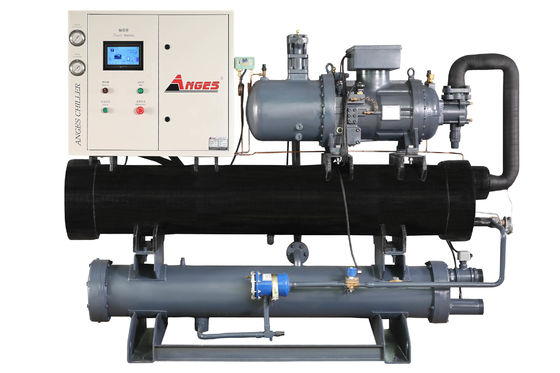

160 Ton Water Cooled Screw Chiller 160HP Screw Compressor Chiller

160 Ton Water Cooled Screw Chiller 160HP Screw Compressor Chiller

160 Ton Water Cooled Screw Chiller

Water Cooled Screw Chiller 160HP

160HP Screw Compressor Chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water Cooled Screw Type
Cooling Capacity:
614.7 Kw
160 Hp
Shell And Tube
Shell And Tube
Brand New
Dimension (l*w*h):
4200*1250*1730 Mm
12 Months
2410 Kg
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
25 days
Payment Terms
T/T, L/C
Product Description

160ton Screw Compressor Chiller Plastic Used Chiller For Sale Air Cooled Chiller And Water Cooled Chiller Water Cooling Screw Chillers


Water-cooled screw chiller

Water-cooled screw chiller systems are especially used for large cooling loads, they have a cooling tower for refrigerant heat dissipation that higher efficiency than air-cooled chillers which use fans for refrigerant heat dissipation.

Water-cooled chillers are more efficient because they use cooling water from a cooling tower to cold the refrigerant in the chiller systems.

Normally water-cooled chillers are cheaper and more efficient, but higher cost in installation and maintenance due to need to install cooling tower and water consumption and water treatment and so on.

This water cooled chiller system has several essential components including:



Cooling tower

Condenser cooling pump

Process chilled water pump

Water tank


Water Screw Chiller Specification


nominal cooling capacity kcal/h 528642
  kw 614.7
input power kw 122
max running current A 277.6
power supply 3PH-380V-50HZ
refrigerant type R22
  type of control expansion valve
compressor type semi-hermetic screw
  quantity 1
  start-up mode Y-△
  capacity control 0-25-50-75-100
evaporator type shell and tube
  chilled fluid flow (m3/h) 105.7
  pipe diameter (inch) 5
condenser type shell and tube
  cooling water flow (m3/h) 127
  pipe diameter (inch) 5
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension mm 4200*1250*1730
net weight kg 2410
running weight kg 2470

Industrial Chiller Features

  1. Anges water-cooled screw chillers are large cooling capacity from 120kwand 1600kw. The chilled water temperature provided is within a range of 5℃-30℃.
  2. High efficient shell and tube type evaporator to connect with large water tank directly.
  3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  4. Screw chiller compressor capacity control can be used in four stages (100%-75%-50%-25%) or three stages (100%-66%-33%) and no stage control system.
  5. PLC control system,integrated controller, fully automatic operation, to provide fault warning.
  6. Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.

Water chiller benefits

  1. Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency and product quality.
  2. The industrial water chillers are use to maintain constant and precise control of the process temperature.
  3. Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
  4. The cooling fluid is recirculated reducing waste and cost.
  5. Screw compressors can achieve comparable part-load efficiencies, whether you run your chiller more often at part or full load to save energy.

The difference between Air-cooled chiller and Water-cooled chiller

An air-cooled chiller refers to a chiller system that uses the ambient air surrounding the condensing unit to cool and condense the refrigerant back into a liquid. In other words, the air cooled chillers use fans for chiller's refrigerant dissipate heat, but the water-cooled needs to install cooling tower for operation.

Water-cooled chillers are more efficient with the disadvantage of having critical maintenance demands included water treatment, chiller condenser-tube cleaning, tower mechanical maintenance, and freeze protection.


Water-cooled screw chiller system installation layout


160 Ton Water Cooled Screw Chiller 160HP Screw Compressor Chiller 0
