100HP Screw Type Water Cooled Chiller CE ISO9001 Water Cooled Liquid Chiller

100HP Screw Type Water Cooled Chiller CE ISO9001 Water Cooled Liquid Chiller

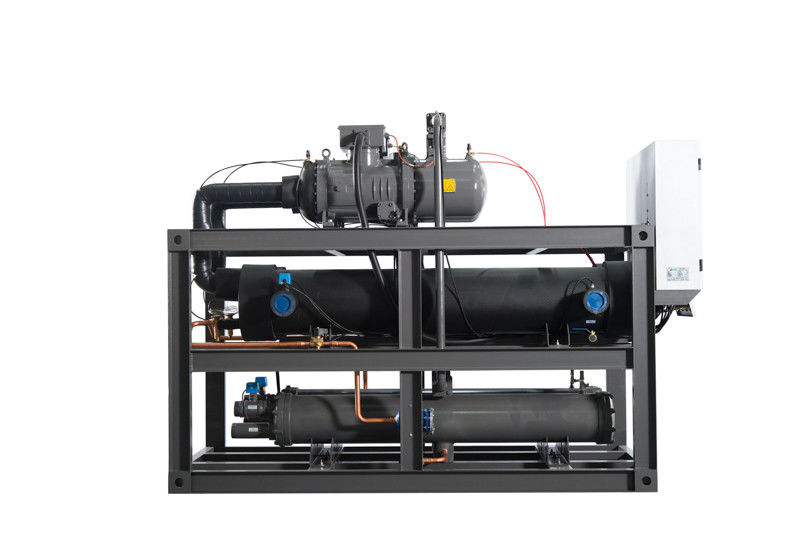

100HP screw type water cooled chiller

screw type water cooled chiller CE

ISO9001 water cooled liquid chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

100HP

Contact Us

Request A Quote
Product Details
Type:
Water Cooled Screw Type
Cooling Capacity:
375.4 Kw
Compressor:
100 Hp
Condenser:
Shell And Tube
Evaporator:
Shell And Tube
Voltage:
3PH~220V/380V/415V~50HZ/60HZ
Condition:
Brand New
Dimension (l*w*h):
3600*765*1750 Mm
Warranty:
12 Months
Refrigerant:
R22/R134a/R407c/R410a
Weight:
1920 Kg
Temperature:
5℃~30℃
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

Water Cooled Chiller System Industrial Water Chiller Screw Compressor Chiller Water Cooled Liquid Chiller


Water screw chiller system
Screw chiller capactiy range is from 140kw to 760kw, water cooling temperature if adjustable 5 - 30 ℃.The screw chiller compressor is See our screw chiller catalogue for more details.
Water-cooled chiller systems have a cooling tower and use cooling water for heat dissipation, thus they feature higher efficiency than air-cooled chillers.This system includes item below.

Water-cooled chiller

Cooling tower

Cooling pump

Insulated water storage tank

Internal circulating pump and External process circulating pump

Water-cooled screw chiller specification

Model



AGS-100WDH


nominal cooling capacity kcal/h 322844
  kw 375.4
input power kw 78
max running current A 177.8
power supply 3PH-380V-50HZ
refrigerant type R22
  type of control expansion valve
compressor type semi-hermetic screw
  Power(kw) 39×2
  start-up mode Y-△
  capacity control 0-33-66-100
evaporator type shell and tube
  chilled fluid flow (m3/h) 64.6
  pipe diameter (inch) 4
condenser type shell and tube
  cooling water flow (m3/h) 78
  pipe diameter (inch) 4
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension mm 3600*765*1750
net weight kg 1920
running weight kg 2230



Water-cooled screw chiller featurers

  1. Adjustable water temperature: Water cooled screw chillers are large cooling capacity from 120kw and 1000kw. The chilled water temperature provided is within a range of 5℃-30℃.
  2. Stable performance: This chiller used two compressors, and each compressor has an independent refrigeration circuit. All compressors are under the command of a unified microcomputer control system, which can be turned on and off one by one without interfering with each other. The machine is all made of original and genuine products, single machine failure rate is very low. Considering the above reasons, the machine can be guaranteed to have a highly stable performance.
  3. High-efficiency and energy saving: Water-cooled chillers are more efficient because they condense depending on the ambient temperature bulb temperature, which is lower than the ambient dry bulb temperature.
  4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.

Benefits of industrial chiller

  • Lower operational costs and save time
  • High energy efficiency and save water
  • High reliability and easy maintance
  • Lifetime warranty

Water chiller service from manufacturer

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
