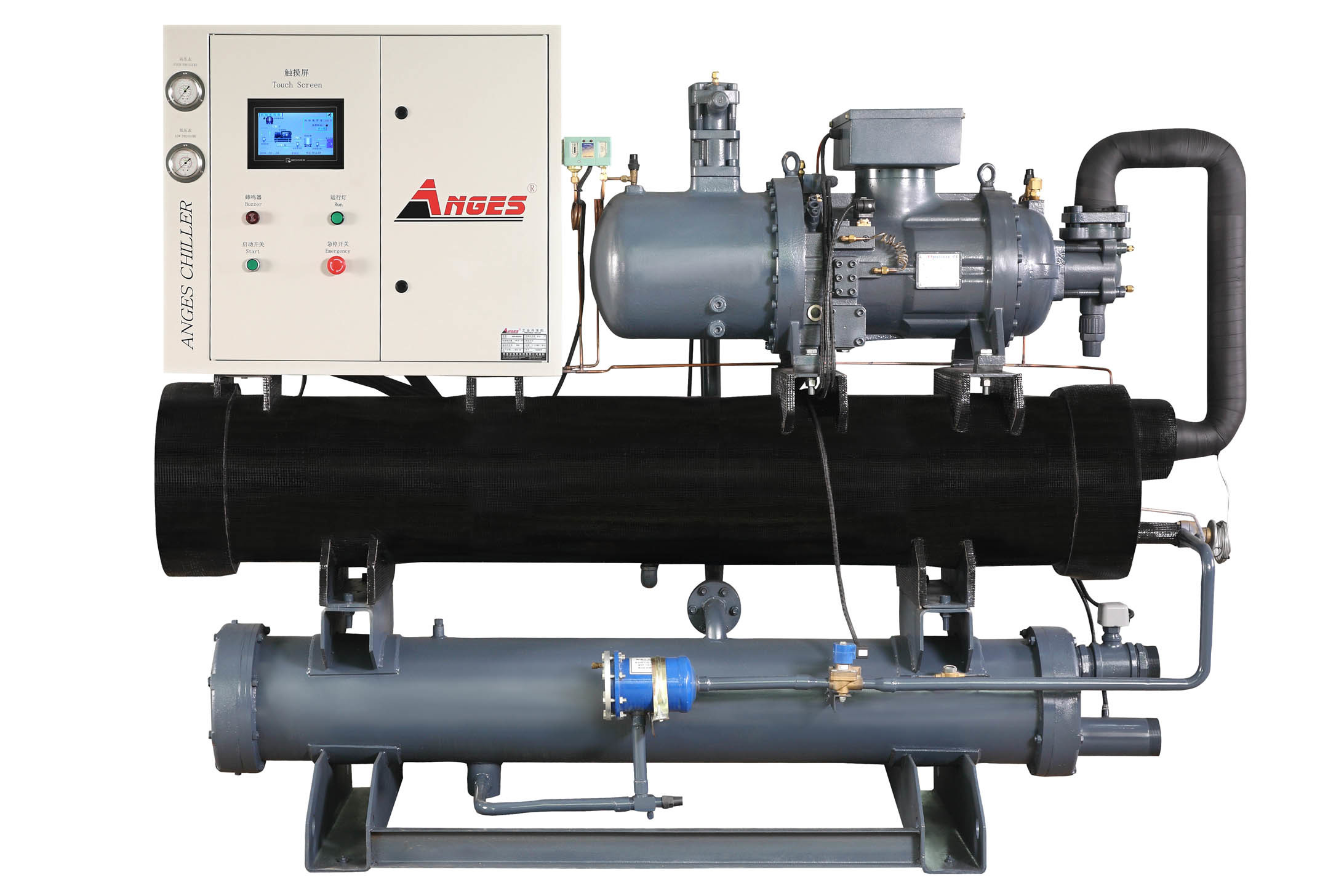

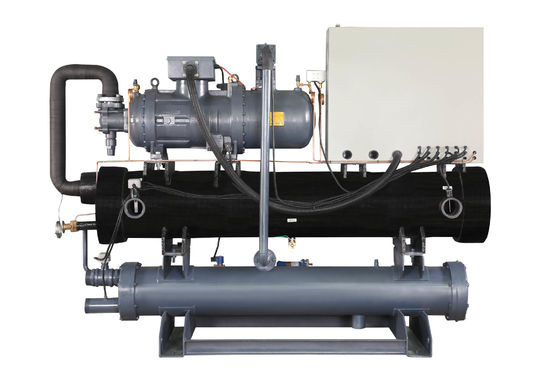

Water Cooled High Efficiency Industrial Process Water Chillers

Water Cooled High Efficiency Industrial Process Water Chillers

Industrial process water chillers

High Efficiency process water chillers

Water Cooled screw water chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water Cooled Screw Type
Cooling Capacity:
201.6 Kw
60 Hp
Shell And Tube
Shell And Tube
Brand New
Dimension (l*w*h):
2450*985*1600 Mm
12 Months
1120 Kg
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
25 days
Payment Terms
T/T, L/C
Product Description

Water Cooled High Efficiency Chiller Industrial Cooling Process Chiller Water Cooled Chiller Package Industrial Chiller


What is Industrial Process Chiller?
A process chiller is a temperature control device that removes heat generated by the production process. This process chiller repeatedly output chilled water through a circulation pump to have heat exchange with the process. They will maintain a stable setting temperature, the cooled water will circulate through the equipment and lower the temperature for the process.
Industrial process chiller systems are essential for temperature control and cooling in several industries. Choosing the right kind of industrial chiller for process and space cooling can lower cooling costs, minimize downtime, and improve operational efficiency.


Industrial Cooling Process Chiller  Specification



nominal cooling capacity kcal/h 173376
kw 201.6
input power kw 42.9
max running current A 97.8
power supply 3PH-380V-50HZ
refrigerant type R22
type of control thermostatic expansion valve
compressor type semi-hermetic screw
quantity 1
start-up mode Y-△
capacity control 0-25-50-75-100
evaporator type shell and tube
chilled fluid flow (m3/h) 34.7
pipe diameter (inch) 3
condenser type shell and tube
cooling water flow (m3/h) 42.9
pipe diameter (inch) 3”
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension mm 2450*985*1600
net weight kg 1120
running weight kg 1270
Benefit of industrial chiller applications
  • Water-coold screw chillers could accurately provide the needed temperature for industrial manufacturing and largely improve efficiency.
  • Accurate temperature control capability, the freezing temperature can be accurate to ±1℃, ensure the highest quality final products.
  • Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
  • TheScrew compressors can achieve comparable part-load efficiencies, whether you run your chiller more often at part or full load, it will save energy.

Features of water-cooled water screw chillers

  1. Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.
  2. Stable performance: Screw compressor chiller is smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
  3. Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
  4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
  5. Simple installation and operation: This 60hp extruder chiller can be a central chiller to cool several processes, easy installation and operation with lower cost. It can work after connecting the production lines with water pipes. Small size, easy to install, and simple to operate.

The difference between Air-cooled chiller and Water-cooled chiller

An air-cooled chiller refers to a chiller system that uses the ambient air surrounding the condensing unit to cool and condense the refrigerant back into a liquid. In other words, the air cooled chillers use fans for chiller's refrigerant dissipate heat.

The most common types of water cooled chillers use water from an external cooling tower to cool the refrigerant in the condenser.They need to install cooling tower and cooling pump for operation. since they require a constant supply of water for cooling, they might not be suitable for locations with water shortages or restrictions.


Industrial water cooled Chiller installation

This water cooled screw chiller system including the items below:


Cooling tower
Condenser cooling pump
process chilled water pump

  1. Install the chiller unit in a steady, ventilated and easy-installation place, avoid corrosion, pollution and weather-beaten.
  2. Choose a suitable cooling tower to match the chiller unit.
  3. Pipeline should be installed according to the dimension of the chiller. Do not reduction the size of the hose, or it will affect the refrigeration effect and increase the power consumption.
  4. The chiller unit must be installed more than 1 meter away from the wall, so that it is easy to install, maintain and adjust

How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
