| Brand Name: | ANGES |
| Model Number: | 3 Ton |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

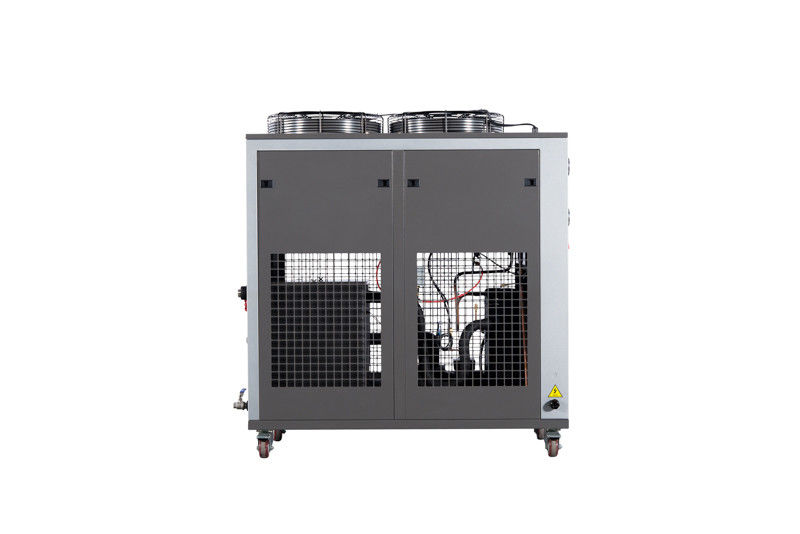

3 Ton Plastic Chiller Plastic Process Cooling Chiller Air Cooled Chiller For Plastic Industry Injection Molding Chiller
Plactis process cooling chiller
Chillers are the most important part of plastic process. In the plastic continuous production process, the chillers can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. It usually requires a water temperature of 10-25 degrees, which the cooling tower cannot meet this temperature.
Anges plastic chiller water temperature range from 5 to 30 ℃ which is adjustable according to different material and process requirements.This portable packaged chillers arecontained complete cooling system,water tank and water pump with water pressure 2 bar to 6 bar options.
Plastic Process Cooling Chiller Features
1. The plastic chillers are use the world famous Danfoss,Copeland or Panasonic hermetic scroll type compressor, features low noise, low vibration, low energy consumption and high efficiency.
2. Water chillers has option of environment-friendly refrigerant R407C, R410A, R404A, R134a, etc.
3. SCHNEIDER brand electric components ensure stable running of the water chiller.
4. Portable packaged chillers built-in stainless steel 304 water tank, easiler installation and maintenance.
5. High quality stainless steel tank and pipelines ensure pure water, and easy to clean and maintain.
Plastic Cooling Chiller System Specification
|
Model |
HBC-3 | ||
| nominal cooling capacity | kcal/h | 7654 | |
| kw | 8.9 | ||
| input power | kw | 3.82 | |
| power supply | 3PH/380V/50HZ | ||
| refrigerant | type | R410a | |
| type of control | Capillary | ||
| compressor | type | hermetic scroll | |
| power(kw) | 3.26 | ||
| condenser | type | finned copper tube + low noise outer rotor fan | |
| cooling air flow(m3/h) | 3000 | ||
| evaporator | type | Shell and tube | |
| chilled fluid flow(m3/h) | 1.53 | ||
| volume(L) | 50 | ||
| inlet and outlet pipe diameter (inch) | 1 | ||
| pump | power (kw) | 0.37 | |
| lift(m) | 20 | ||
| safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | ||
| weight | kg | 160 | |
| dimension | mm | 930*520*1185 | |
Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃, Outlet chilled fluid temperature: 12℃.
Inlet cooling air temperature: 30℃, Outlet cooling air temperature:35℃.
The temperature range of chilled fluid is from 5℃ to 30℃.
The air cooled chillers are better to run while the ambient temperature is below 35°C.If not, the chillers will have high pressure alarm.Air-cooled chillers designed for high ambient temperatures are excluded.
Benefit of Plastic Process Chiller Applications
How to select the model of the chiller ?
|
|
