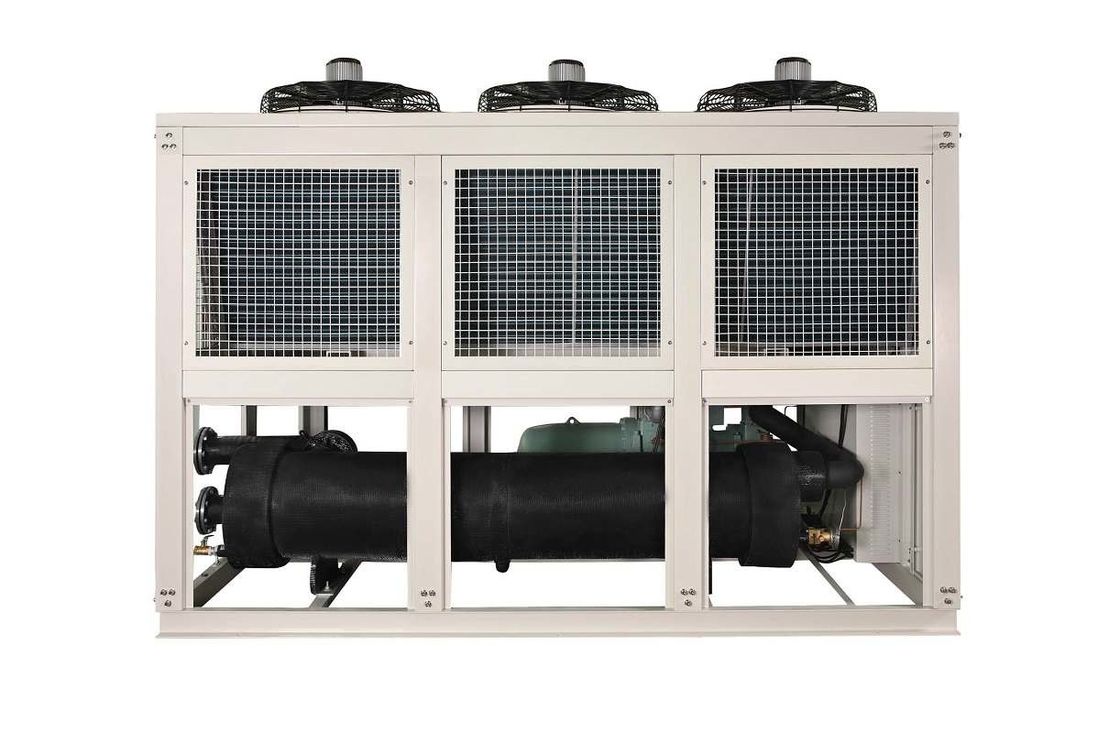

100 Ton Air Cooling Screw Chiller 100HP Injection Molding Machine Water Chiller Customized Color Two Compressor

100 Ton Air Cooling Screw Chiller 100HP Injection Molding Machine Water Chiller Customized Color Two Compressor

100 Ton Air Cooled Screw Chiller

Air Cooled Screw Chiller 100HP

Air Cooled injection molding machine water chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Expansion Valve:
Solenoid Valve:
Drying Filter:
Oil Pressure Gauge:
Touch Screen:
PLC Controller:
Electrical Components:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

Water Cooled Chiller Air Cooled Water Central Chiller 100ton Process Chiller Injection Molding Chiller Industrial Chiller Suppliers
Air Cooled Central Chiller for Plastic Injection molding Process
This Air-cooled screw central chiller is perfect choice that use for plastic process, such as plastic injection, plastic extruding, bottle blowing, film blowing and son on.The industrial chiller used to transfer heat away from the mold, it can accurately controls the cooling time in injection molding is a critical part of the production process.
A central chiller means any chiller used for multiple process throughout a plant at the same time.It provides a continuous cold water to the process at a setting temperature.The system requires a water storage tank, internal circulations pump, process pumps to distribute the water to each process.
Process Chiller Injection Molding Specification


nominal cooling capacity kcal/h 282080
  kw 328
input power kw 93
Max. Running current A 211.5
power supply 3PH~380V/50HZ
refrigerant type R22
  refrigerating circuit 1
  type of control expansion valve
compressor type semi-hermetic screw
  quantity 1
  Power 37.4×2
  start-up mode Y-△
  capacity control 0-33-66-100
condenser type air cooled type finned copper tube
  cooling air flow (m3/h) 105000
  power(kw) 18
evaporator type shell and tube
  quantity 1
  chilled fluid flow (m3/h) 56.4
  inlet and outlet pipe diameter (inch) 4
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight kg 3340
Dimension mm 4400*1890*2720

Process Chiller Injection Molding Features:

  1. Adopting high-efficiency and energy-saving compressors of world class grade brands, high-quality condensers and evaporators, high cooling efficiency, stable performance, low noise and long service life.
  2. The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.
  3.  Capacity control can adopt four-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless control system.
  4.  High-efficiency internally threaded copper pipes enhance the heat transfer effect and are more energy-efficient and efficient.

Some distinctive features of Air-cooled central screw type chillers:

  1. Lower installed cost.The central screw chiller system contains refrigeration circuit, reservoir, pumps, and necessary components to work for multiple process throughout a plant, less pipes installation.
  2. Convenience of installation and service.This air cooled central no need cooling tower installation, and water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.
  3. Simple operation. No need to operate multiple chiller units for different process one by one.
  4. High Efficiency.The central chiller system continuously measures ambient and process conditions and will adjust to operate in the most efficient manner.

How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
