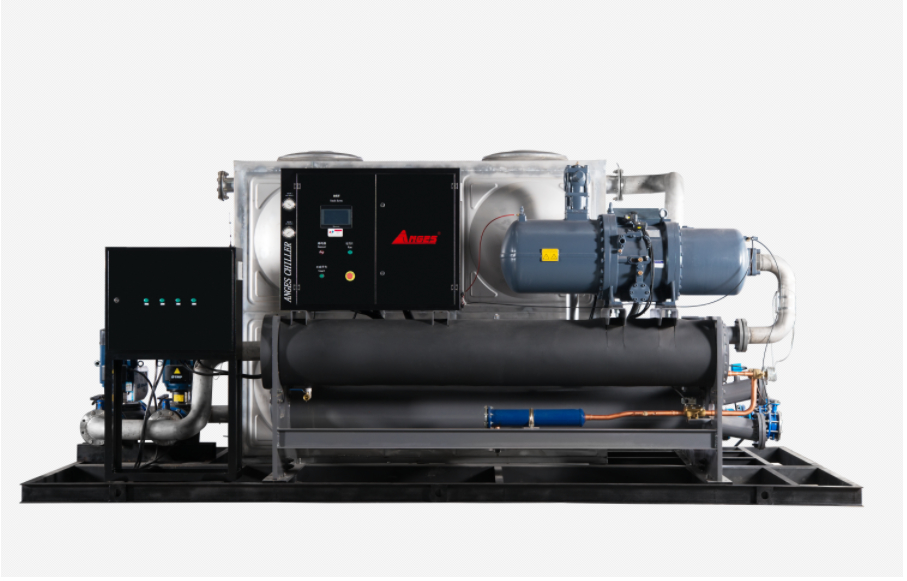

Name: 100HP Water Cooled Scroll Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 100hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

100HP Water Cooled Scroll Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line

Industrial Water Cooled Scroll Chiller

Water Chillers For Printing

100HP Water Cooled Scroll Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

100hp

Request A Quote

Product Details

Compressor:

Screw Compressor

Chiller Type:

Water Cooled Chiller

Condenser Type:

Shell And Tube

Horse Power:

100HP

Power:

3ph - 50 HZ - 380 V

Compressor Brand:

Hanbell

Highlight:

Industrial Water Cooled Scroll Chiller

Water Chillers For Printing

100HP Water Cooled Scroll Chiller

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Polywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

Compact Water-Cooled Chillers 6ton Rapid Cooling with 19kw Cooling Capacity 24/7 Remote Monitoring Eco-Friendly Refrigerant

Get Best Price

Contact Now

Product Description

Technical Parameter of Integrated Water-Cooled Screw Type Chiller

Model Item		AGS-120WSHI
nominal cooling capacity	kcal/h	376594
nominal cooling capacity	kw	437.9
input power	kw	114
max running current	A	160.5
power supply	3PH-380V-50HZ
refrigerant	type	R22
refrigerant	type of control	expansion valve
compressor	type	semi-hermetic screw
	Power(kw)	88.3
	start-up mode	Y-△
	capacity control	0-25-50-75-100
evaporator	type	shell and tube
	chilled fluid flow (m³/h)	75.3
	pipe diameter (inch)	5
condenser	type	shell and tube
	cooling water flow (m³/h)	94.1
	pipe diameter (inch)	5
safety protection	compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Tank	L	4000
External circulation pump	Power(kw)	15
External circulation pump	Lift(m)	26.2
Internal circulation pump	Power(kw)	11
Internal circulation pump	Lift(m)	20
dimension	mm	390022502400
net weight	kg	2630
running weight	kg	6690

Note: 1.Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃

Inlet cooling water temperature: 30℃; Outlet cooling water temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Shenzhen Anges Machinery Co., Ltd

Configuration table for Water-cooled Screw Type Chiller

Item	Main Parts	Brand	Remark
1	Semi-hermetic Compressor	Hanbell	China
2	Expansion Valve	Emerson	USA
3	Condenser	Anges	China
4	Evaporator	Anges	China
6	Solenoid Valve	Emerson	USA
7	Drying Filter	Emerson	USA
8	Oil Pressure Gauge (High&Low)	Refco	Switzerland
9	Touch Screen	WeintekI	China
10	PLC Controller	Siemens	Germany
11	Electrical components	Schneider	France
