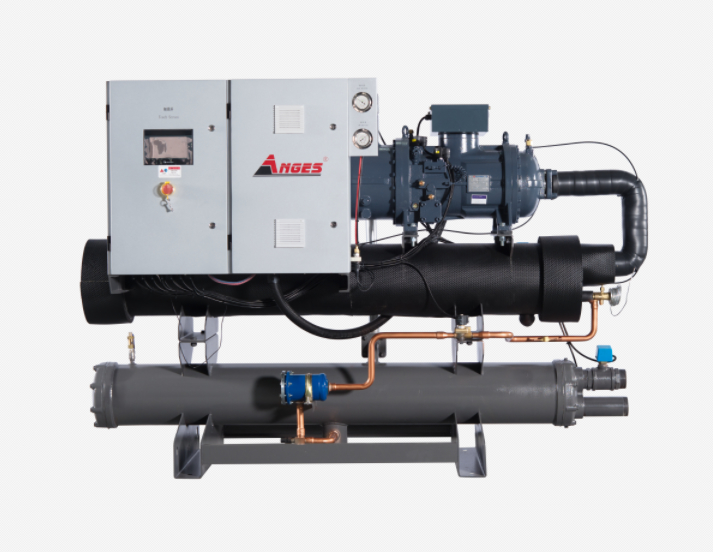

Name: 60HP Water Cooled Scroll Chiller for Industrial Process Cooling in Printing and BOPP Film Lamination Line
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 60hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

60HP Water Cooled Scroll Chiller for Industrial Process Cooling in Printing and BOPP Film Lamination Line

BOPP Film Lamination Line Scroll Chiller

Industrial Process Cooling Scroll Chiller

60HP Water Cooled Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

60hp

Request A Quote

Product Details

Warranty:

12 Months

Evaporator Type:

Shell And Tube

Type:

Water-cooled

Fob Port:

SHENZHEN

Original:

Shenzhen China Manufacturer

Auxillary Cooling System:

Cooling Tower

Price Term:

EXW, FOB, CIF

Highlight:

BOPP Film Lamination Line Scroll Chiller

Industrial Process Cooling Scroll Chiller

60HP Water Cooled Chiller

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Polywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

Contact Now

Product Description

Technical Parameter of Water-Cooled Screw Type Chiller

Model Item		AGS-060WSH
nominal cooling capacity	kcal/h	173376
nominal cooling capacity	kw	201.6
input power	kw	42.9
max running current	A	97.8
power supply	3PH-380V-50HZ
refrigerant	type	R22
refrigerant	type of control	thermostatic expansion valve
compressor	type	semi-hermetic screw
	quantity	1
	start-up mode	Y-△
	capacity control	0-25-50-75-100
evaporator	type	shell and tube
	chilled fluid flow (m³/h)	34.7
	pipe diameter (inch)	3
condenser	type	shell and tube
	cooling water flow (m³/h)	42.9
	pipe diameter (inch)	3”
safety protection	compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
dimension	mm	24509851600
net weight	kg	1120
running weight	kg	1270

Note: 1.Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃; Outlet chilled fluid temperature: 12℃

Inlet cooling water temperature: 30℃; Outlet cooling water temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

The temperature range of cooling water is from 18℃ to 37℃;

Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Shenzhen Anges Machinery Co., Ltd

Configuration table for Water-cooled Screw Type Chiller

Item	Main Parts	Brand	Remark
1	Semi-hermetic Compressor	Hanbell	China
2	Expansion Valve	Emerson	USA
3	Condenser	Anges	China
4	Evaporator	Anges	China
6	Solenoid Valve	Emerson	USA
7	Drying Filter	Emerson	USA
8	Oil Pressure Gauge (High&Low)	Refco	Switzerland
9	Touch Screen	WeintekI	China
10	PLC Controller	Siemens	Germany
11	Electrical components	Schneider	France
