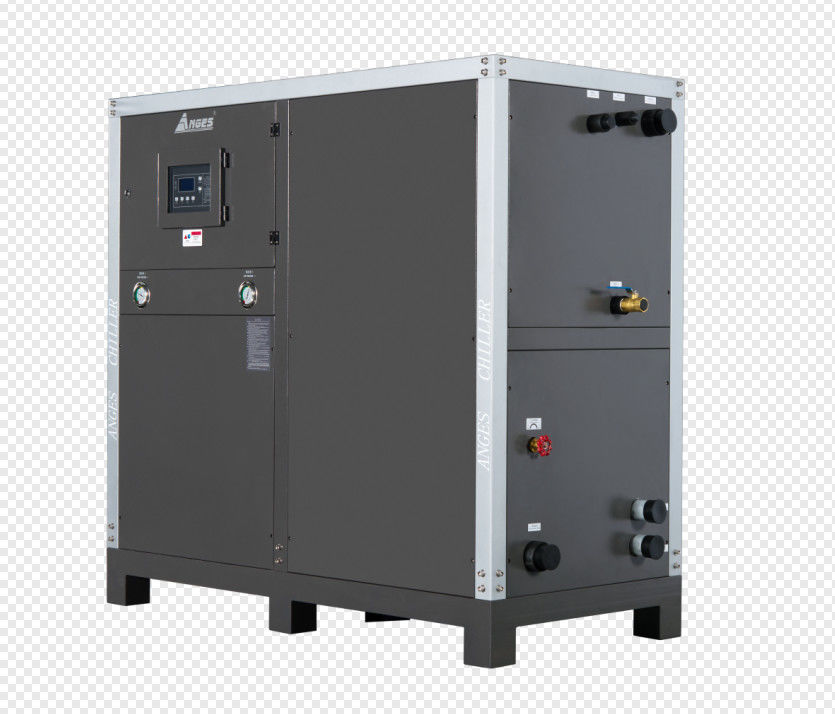

Name: Scroll Compressor 3HP Water Cooled Industrial Process Water Chiller for Printing and BOPP Film Lamination Line with Cooling Tower
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 5hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

Scroll Compressor 3HP Water Cooled Industrial Process Water Chiller for Printing and BOPP Film Lamination Line with Cooling Tower

3HP Water Cooled Chiller

Industrial Process Water Cooled Chiller

Scroll Compressor Water Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

5hp

Request A Quote

Product Details

Cooling Method:

Water Cooled

Voltage:

3PH~220V/380V/415V~50HZ/60HZ

Water Tank Material:

Stainless Steel 304

Refrigerant:

R22/R134a/R407C/R410a

Compressor Type:

Scroll

Auxillary Cooling System:

Cooling Tower

Machinery Test Report:

Provided

Evaporator:

Shell And Tube

Total Input Power:

10.4KW

Horse Power:

3HP

Highlight:

3HP Water Cooled Chiller

Industrial Process Water Cooled Chiller

Scroll Compressor Water Chiller

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Polywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

Contact Now

Product Description

Shenzhen Anges Machinery Co., Ltd

Technical Parameter of Water-cooled scrolled Type Chiller

Model Item		AWK-3
nominal cooling capacity	Kcal/h	8944
nominal cooling capacity	kw	10.4
input power	kw	2.47
power supply	3PH~380V/50HZ
refrigerant	type	R22
refrigerant	type of control	Capillary
compressor	type	Hermetic scroll type
compressor	Power (kw)	2.1
condenser	type	Shell and tube
	Cooling water flow(m³/h)	2.2
	Inlet/outlet pipe caliber(inch)	1
evaporator	type	Shell and tube
	Chilled water flow(m³/h)	1.8
	Tank volume(L)	60
	Inlet/outlet pipe chiller(inch)	1
Water pump	Power(KW)	0.37
Water pump	Lift(m)	20
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight	kg	170
Dimension	mm	12506001200

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Configuration table for Air-cooled scrolled Type Chiller

Item	Main Parts	Brand	Origin
1	Compressor	Panasonic	Japan
2	Condenser	ANGES	China
3	Evaporator	ANGES	China
4	Drying Filter	Emerson	USA
5	Controller PCB	Punp	China
6	Electric Components	Schneider	France
7	Pressure Controller	Fensheng	China
8	Oil Pressure Gauge	Jiunai	China
9	Water Pump	Minamoto	China
