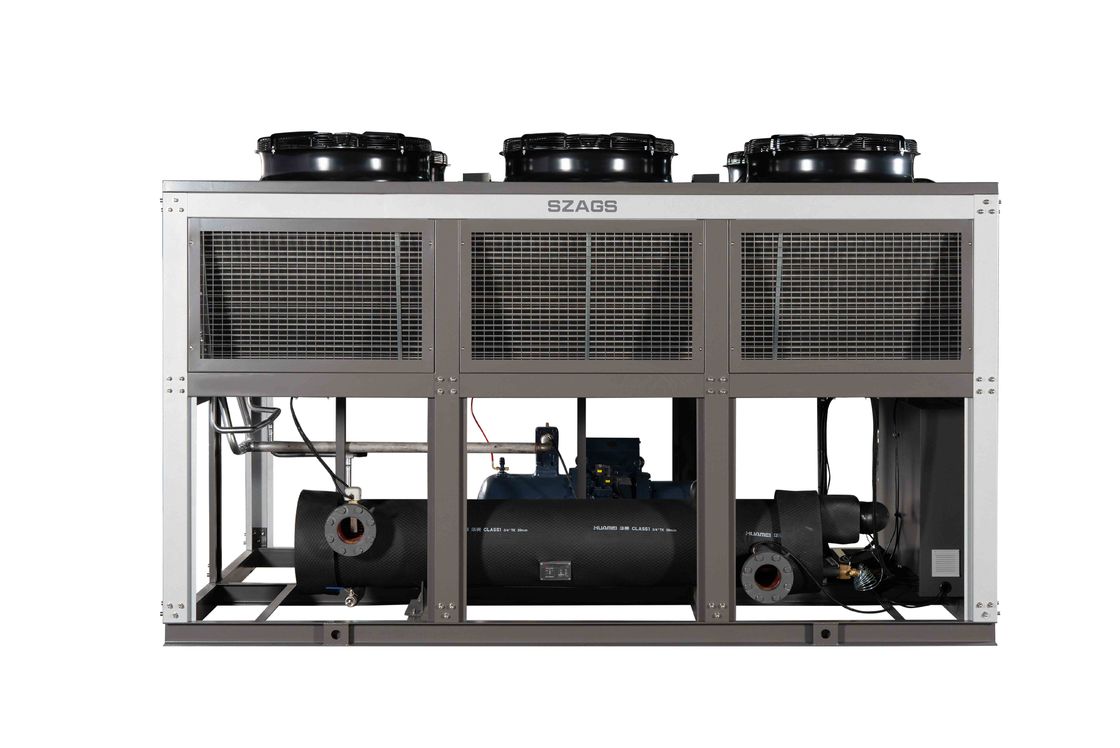

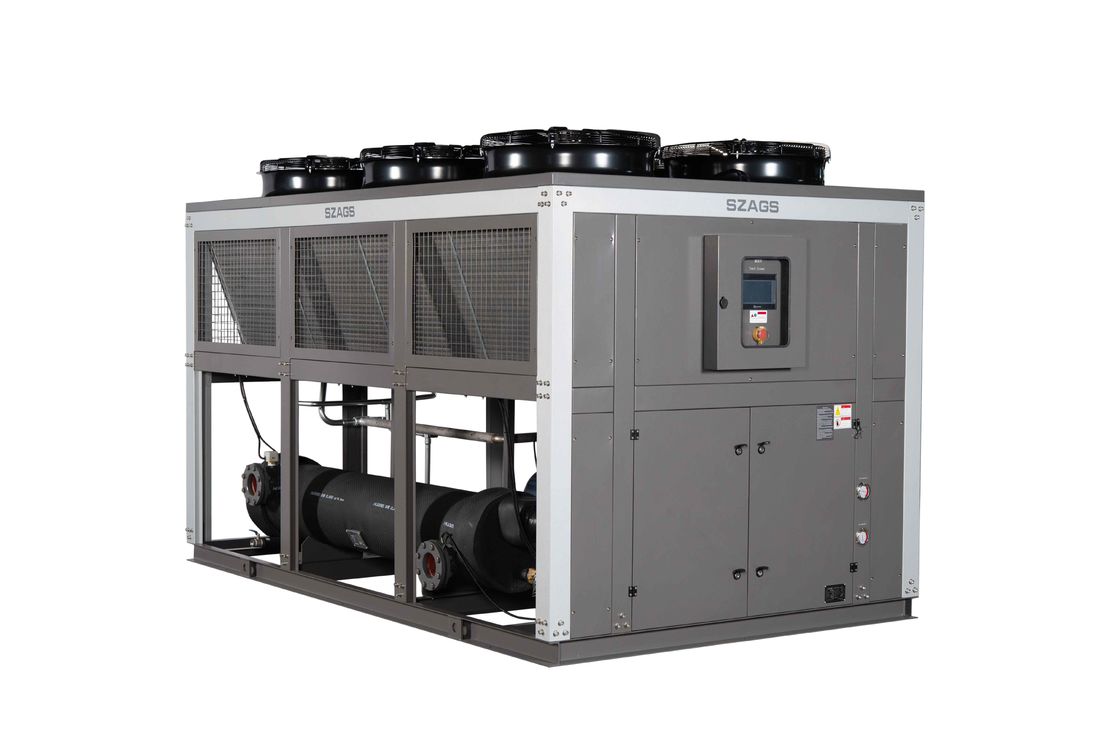

100HP Air-Cooled Screw Industrial Chiller High-Efficiency Cooling For Extrusion Lines

100HP Air-Cooled Screw Industrial Chiller High-Efficiency Cooling For Extrusion Lines

100HP Air Cooled Screw Chiller

High Efficiency Air Cooled Screw Chiller

Extrusion Lines Air Cooled Screw Chiller

Place of Origin:

China

Brand Name:

Anges/SZAGS

Certification:

CE/ISO9001

Model Number:

AGS-150WDH

Contact Us
Request A Quote
Product Details
Compressor Control:
0-33-66-100%
Expansion Valve:
Emerson
Refrigerant Type:
R22/R407C/R410A/R134A
Air Flow:
56.4m3/h
Condenser Fan Type:
Air Cooled High-efficient Inner Threaded Copper-tubing Aluminum Fin Type
Cooling Capacity:
100HP
Compressor Brand:
Bitzer/Refcomp/Hanbell
Compressor Quantity:
2
Temp Control Accuracy:
PID±1℃
Cooling Method:
Air-cooled
Cooling Type:
Air Cooled Chiller
Type Of Control:
Thermostatic Expansion Valve
Temperature Range::
5℃ ~ 35℃
Condition:
New Brand
Highlight:

100HP Air Cooled Screw Chiller

,

High Efficiency Air Cooled Screw Chiller

,

Extrusion Lines Air Cooled Screw Chiller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiatible
Packaging Details
Standard export wooden box
Delivery Time
10~35days
Payment Terms
T/T,L/C,MoneyGram
Supply Ability
600 sets/ month
Product Description

100HP Air-Cooled Screw Industrial Chiller High-Efficiency Cooling for Extrusion Lines

Technical Parameter of AGS-100ADH Air-cooled Screw Type Chiller

Model                                           Parameter

AGS-100ADH
nominal cooling capacity kcal/h 282080
kw 328
input power kw 93
max running current A 211.5
power supply 3PH 380V 50Hz
refrigerant type R407C
refrigerating circuit 2
weight(kg) 70
type of control thermostatic expansion valve
compressor type semi-hermetic screw
power(kw) 37.4×2
quantity 2
start-up mode Y-△
capacity control 0-33-66-100
condenser type air cooled high-efficient inner threaded copper-tubing aluminum fin type
cooling air flow (m3/h) 205000
power(kw) 18
evaporator type shell and tube
quantity 1
chilled fluid flow (m3/h) 56.4
inlet and outlet pipe diameter (inch) 4"
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection.
dimension Length(mm) 4200
Width(mm) 2200
Height(mm) 2383
net weight kg 3340
running weight kg 3540


Features of SZAGS Air-Cooled Screw Chillers

  1. World-Class Core Components
    Equipped with high-efficiency, energy-saving compressors from globally renowned brands, paired with premium condensers and evaporators. Delivers high cooling efficiency, stable performance, low noise, and extended service life.

  2. Advanced Control System
    Utilizes Siemens PLC and an LCD touch screen to precisely monitor and control cooling capacity in real time. This ensures optimal performance and significantly reduces operating costs.

  3. Flexible Capacity Regulation
    Offers either three-stage capacity control (100%–66%–33%–0%) or stepless regulation, adapting seamlessly to varying load demands.

  4. Enhanced Heat Transfer Efficiency
    Features high-efficiency internally threaded copper tubes that significantly improve heat exchange performance and overall energy savings.

  5. Robust Shell-and-Tube Construction
    Employs shell-and-tube evaporators and condensers with welded designs for superior durability, compact structure, reliable quality, and long operational lifespan.

Advantages of SZAGS Air-Cooled Screw Chillers

  1. Rapid Cooling Response
    Quickly adapts to fluctuating load demands, ensuring consistent and flexible cooling performance.

  2. Eco-Friendly Refrigerants
    Uses environmentally friendly refrigerants that meet modern sustainability standards and reduce carbon footprint.

  3. User-Friendly Operation
    Intuitive control systems enable easy operation and monitoring with minimal technical training.

  4. Exceptional Durability
    Built with premium components for long-lasting performance, minimizing maintenance and replacement costs.

  5. Smart Energy Efficiency
    Features stepwise capacity control (0-33-66-100%) that adjusts output based on real-time demand, significantly lowering energy consumption.

  6. Versatile Industrial Applications
    Proven performance across diverse sectors including plastics, pharmaceuticals, food processing, and chemicals.

FAQ:

Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
Cooling capacity; If you don't know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements; Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system.
The units will be fully tested before package and The packing will be carefully checked.

Q3: What's the warranty?
A3: 1 year warranty for all machines.
