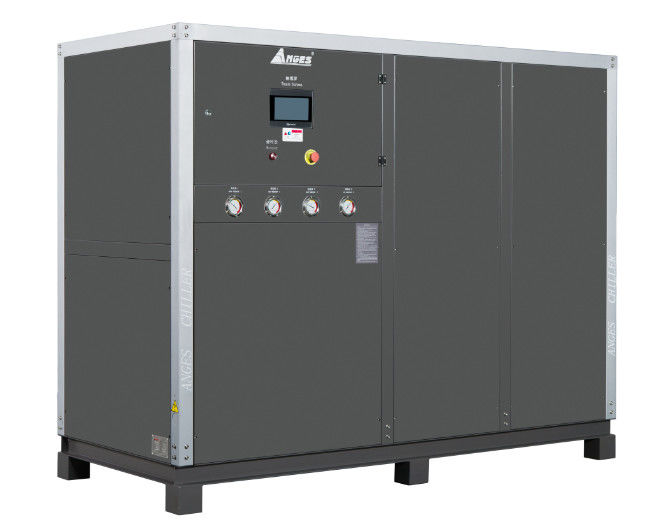

Name: High-Performance Water Cooled Chiller for Industrial Cooling Requirements
Brand: Shenzhen Anges Machinery Co., Ltd
SKU: 25hp
Price: 2,100.00 USD
Availability: InStock

Home > products > Industrial Water Chiller >

High-Performance Water Cooled Chiller for Industrial Cooling Requirements

High Performance Water Cooled Chiller

Industrial Water Cooled Chiller

Industrial Cooling Water Cooled Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

25hp

Chat Now

High-Performance Water Cooled Chiller for Industrial Cooling Requirements

Product Details

Fob Port:

SHENZHEN

Total Input Power:

82.2KW

Compressor Type:

Scroll

Water Outlet Temp:

12c

Condenser Type:

Shell And Tube

Cooling Mode:

Water Cooling

Safety Protection:

High/Low Pressure Protection, Overload Protection, Anti-freezing Protection

Highlight:

High Performance Water Cooled Chiller

Industrial Water Cooled Chiller

Industrial Cooling Water Cooled Chiller

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Plywood case

Delivery Time

30 days

Payment Terms

L/C, T/T

10 Ton Chiller 10 ton water cooled chiller Industrial Water Chiller High Efficiency Chiller System For Injection Molding

Get Best Price

50HP chiller 50Ton Industrial Air Cooled Water Chiller For Injection Molding Machine Modular Air Cooled Scroll Chiller

Get Best Price

8 Ton 8hp Industrial Water Chiller Scroll Central Water Chiller

Get Best Price

6 Ton 6hp Industrial Water Cooled Scroll Chiller 6 Tr

Get Best Price

86-755-8958-2358

Chat Now

Product Description

Shenzhen Anges Machinery Co., Ltd

Technical Parameter of Water-cooled scrolled Type Chiller

Model Item		AWK-25(D)
nominal cooling capacity	Kcal/h	69316
nominal cooling capacity	kw	80.6
input power	kw	17.8
power supply	3PH~380V/50HZ
refrigerant	type	R22
refrigerant	type of control	Expansion valve
compressor	type	Hermetic scroll type
compressor	Power (kw)	15.6
condenser	type	Shell and tube
	Cooling water flow(m³/h)	16.7
	Inlet/outlet pipe caliber(inch)	2
evaporator	type	Shell and tube
	Chilled water flow(m³/h)	13.9
	Tank volume(L)	175
	Inlet/outlet pipe chiller(inch)	2
Water pump	Power(KW)	2.2
Water pump	Lift(m)	20
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight	kg	1110
Dimension	mm	19509501700

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.

Configuration table for Air-cooled scrolled Type Chiller

Item	Main Parts	Brand	Origin
1	Compressor	Panasonic	Japan
2	Condenser	ANGES	China
3	Evaporator	ANGES	China
4	Drying Filter	Emerson	USA
5	Controller PCB	Punp	China
6	Electric Components	Schneider	France
7	Pressure Controller	Fensheng	China
8	Oil Pressure Gauge	Jiunai	China
9	Water Pump	Minamoto	China
