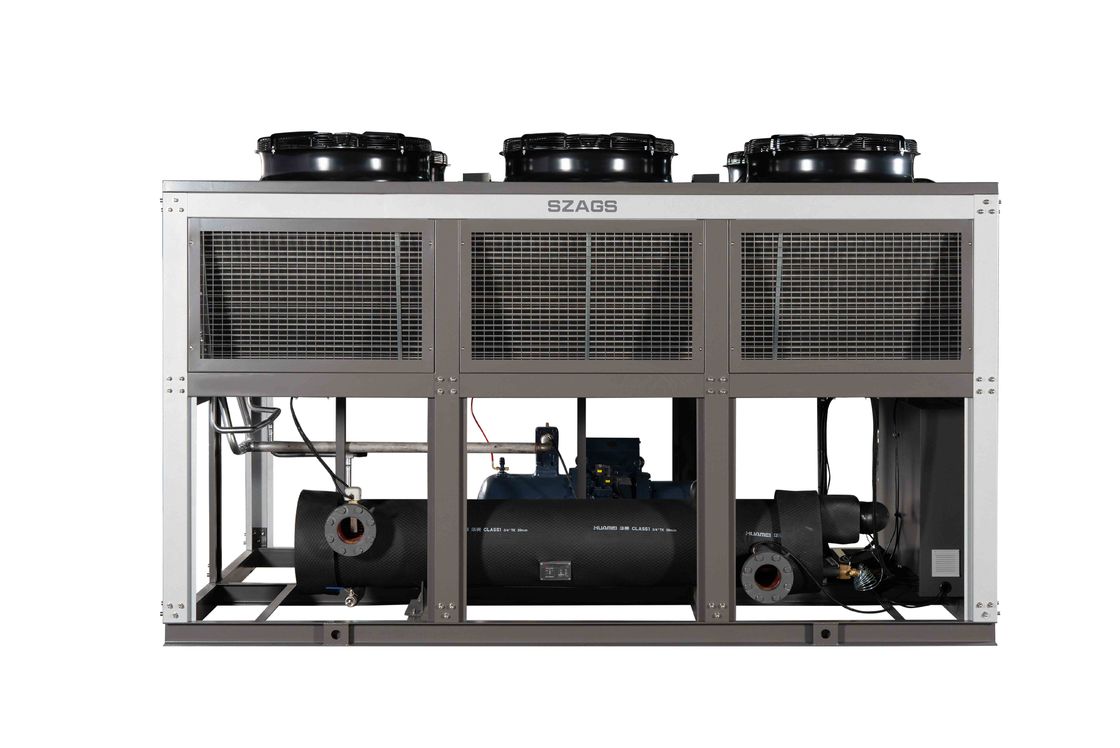

60HP Air Cooled Screw Compressor Chiller Industrial chemical chiller 60Ton Air cooling machine for 10units Injection molding machine.

60HP Air Cooled Screw Compressor Chiller Industrial chemical chiller 60Ton Air cooling machine for 10units Injection molding machine.

60HP Air Cooled Screw Chiller

Industrial Air Cooled Screw Chiller

10units Air Cooled Screw Chiller

Place of Origin:

China

Brand Name:

ANGES

Model Number:

60HP

Contact Us
Request A Quote
Product Details
Condition:
Brandnew
Warranty:
1-year
Voltage:
3PH~220V/380/415V~50HZ/60HZ
Cooling Capacity:
60ton
Compressor Type:
Semi-hermetic Screw
Evaporator:
Shell And Tube
Condenser:
Aluminum Finned Copper Tube + Axil Fan
Refrigerant:
R134a/R407C/R22
Highlight:

60HP Air Cooled Screw Chiller

,

Industrial Air Cooled Screw Chiller

,

10units Air Cooled Screw Chiller

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

60HP Air Cooled Screw Compressor Chiller Industrial  chemical chiller 60Ton Air cooling machine for 10units Injection molding machine.



The process of providing cooling for injection molding machines by chillers mainly involves heat exchange and circulation systems. The core of this system is to remove the heat generated by the injection molding machine mold, hydraulic system or barrel through the circulation of cooling water.





Item

Model

ACK-60(F)
Nominal cooling capacity Kcal/h 158928
kw 184.8
Input power kw 58.3
Power supply 3PH 380V 50HZ
Refrigerant Type R410A
Type of control Expansion valve
Compressor Type Hermetic scroll
Power(kw) 49.8
Condenser Type Finned copper tube + low noise outer rotor fan
Power(kw) 4.5
Cooling air flow(m3/h) 80000
Evaporator Type Shell and tube
Min Chilled fluid flow(m3/h) 31.86
Inlet/outlet pipe caliber(inch) 3
Water tank Volume(L) 345
Pump Power(kw) 4
Flow(m3/h) 42
Lift(m) 23
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Weight kg 2260
Dimension mm 3400*2000*2053




Chiller type selection


Air-cooled chiller: dissipates heat through fans, suitable for well-ventilated environments with limited water resources.



Water-cooled chiller: needs to be paired with a cooling tower, which is more efficient and suitable for large injection molding machines or high-temperature environments.



Variable frequency chiller: automatically adjusts power according to load, with significant energy-saving effects.



Key selection parameters:



Injection molding machine clamping force (tonnage) and hourly output.



Required cooling water flow (m³/h) and temperature difference (usually 5°C–10°C).



Ambient temperature and water supply conditions.





The benefits of using air-cooled chillers:

  1. No cooling towers.
  2. Better environmental stability-no water wastage.
  3. Low maintenance costs.
  4. Easier to operate and control-tower freezing and tower bypass absent.
  5. Chemical costs avoided.
  6. Water costs avoided, especially in cities.
