Industrial Water Chiller
>

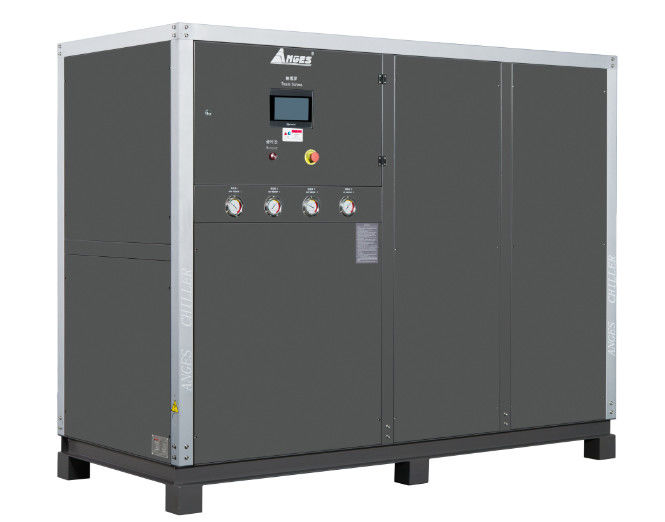

20HP Water Cooled Scroll Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line

20HP Water Cooled Scroll Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line

Brand Name: ANGES
Model Number: 20hp
MOQ: 1
Packaging Details: Plywood case
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Compressor:
Double Compressor
Chiller Type:
Water Cooled Chiller
Capacity:
68KW
Voltage:
3/380/50
Weight:
950KG
Pump Power:
2.2kW
Highlight:

20HP water Cooled Scroll Chiller

,

BOPP Film Lamination Line Water Chillers

Product Description

Shenzhen Anges Machinery Co., Ltd

Technical Parameter of Water-cooled scrolled Type Chiller

Model

Item

AWK-20(D)
nominal cooling capacity Kcal/h 58480
kw 68
input power kw 15.4
power supply 3PH~380V/50HZ
refrigerant type R22
type of control Expansion valve
compressor type Hermetic scroll type
Power (kw) 13.2
condenser type Shell and tube
Cooling water flow(m3/h) 14.1
Inlet/outlet pipe caliber(inch) 2
evaporator type Shell and tube
Chilled water flow(m3/h) 11.7
Tank volume(L) 175
Inlet/outlet pipe chiller(inch) 2
Water pump Power(KW) 2.2
Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 950
Dimension mm 1950*950*1700


Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.









Configuration table for Air-cooled scrolled Type Chiller

Item Main Parts Brand Origin
1 Compressor Panasonic Japan
2 Condenser ANGES China
3 Evaporator ANGES China
4 Drying Filter Emerson USA
5 Controller PCB Punp China
6 Electric Components Schneider France
7 Pressure Controller Fensheng China
8 Oil Pressure Gauge Jiunai China
9 Water Pump Minamoto China
