| Brand Name: | ANGES |
| Model Number: | 120hp |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T |

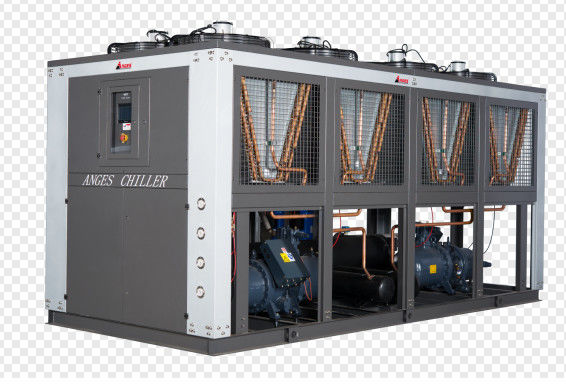

Technical Parameter of Air Cooled Screw Type Chiller
|
Model Parameter |
AGS-075ASH | |
| nominal cooling capacity | kcal/h | 202100 |
| kw | 235 | |
| input power | kw | 81 |
| Max. Running current | A | 185.1 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 1 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 67.7 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow (m3/h) | 80000 | |
| power(kw) | 13.5 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 40.4 | |
| inlet and outlet pipe diameter (inch) | 4 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 2260 |
| Dimension | mm | 3150*2140*2200 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature:35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The machine can be used while the ambient temperature is below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.
|
|
| Brand Name: | ANGES |
| Model Number: | 120hp |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | L/C, T/T |
Technical Parameter of Air Cooled Screw Type Chiller
|
Model Parameter |
AGS-075ASH | |
| nominal cooling capacity | kcal/h | 202100 |
| kw | 235 | |
| input power | kw | 81 |
| Max. Running current | A | 185.1 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 1 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 67.7 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow (m3/h) | 80000 | |
| power(kw) | 13.5 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 40.4 | |
| inlet and outlet pipe diameter (inch) | 4 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 2260 |
| Dimension | mm | 3150*2140*2200 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature:35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The machine can be used while the ambient temperature is below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.
