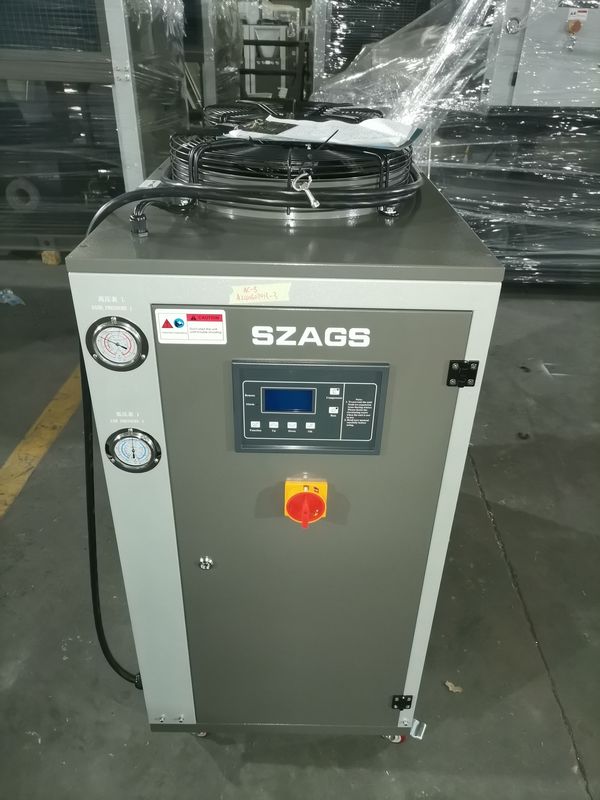

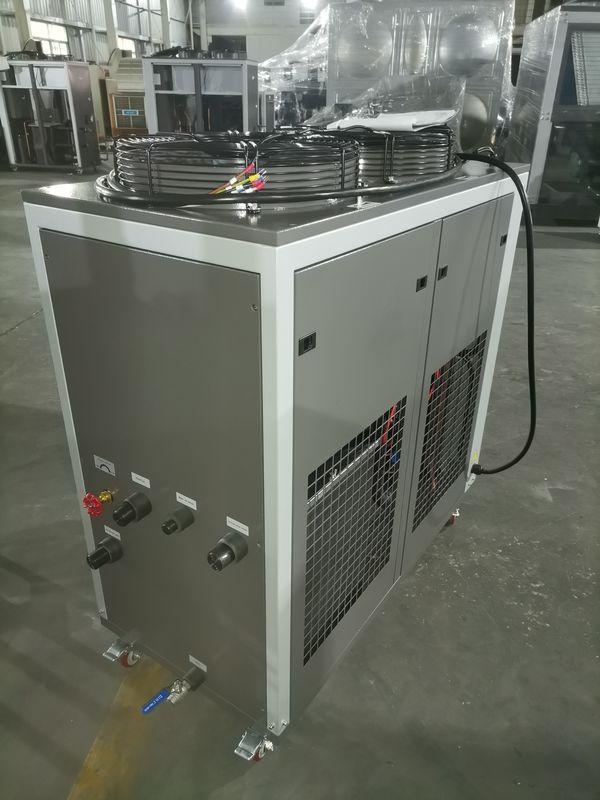

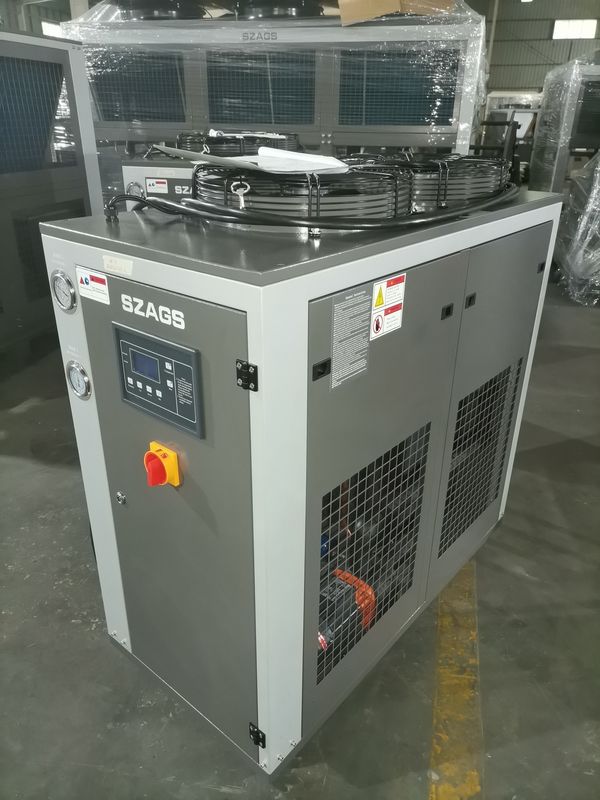

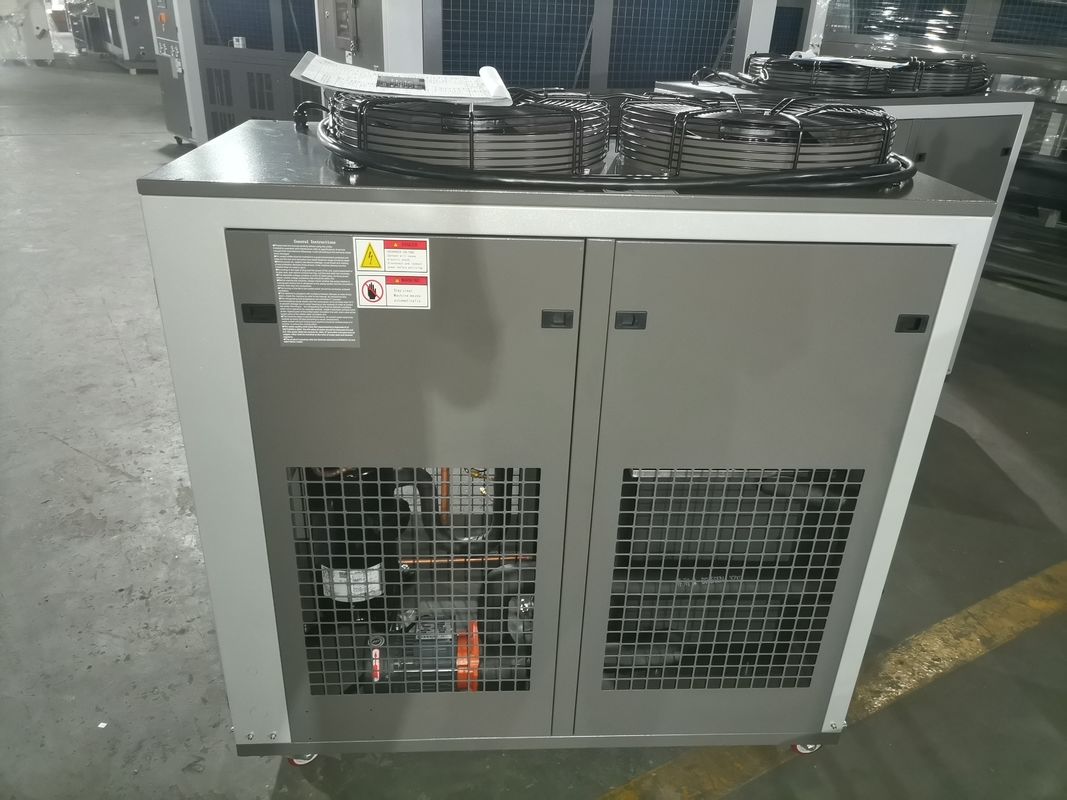

5TR Air Cooled Chiller Model HBC-5 Air Condenser Cooling Customized

5TR Air Cooled Chiller Model HBC-5 Air Condenser Cooling Customized

5TR air cooled chiller

5TR air condenser cooling chiller

HBC-5 air cooled chiller

Place of Origin:

SHENZHEN

Brand Name:

SZAGS

Certification:

ISO9001,CE

Model Number:

HBC-5

Contact Us

Request A Quote
Product Details
Theory:
Air Finned Copper Tube Condenser
Working Temperature:
5~35℃
Cooling Capacity:
5tons
Total Input Power:
5.25KW
Voltage:
110~480V-50/60HZ/3 Phase, Customized
Dimension:
1300*650*1450mm
Working Condition:
35℃
Refrigeration:
R22/R407C/R410A
Color:
Gray Or Customized
Condition:
Brand New
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiated
Packaging Details
plywood box
Delivery Time
10 days
Supply Ability
120 units per month
Product Description
Product Description

5ton/5HP Air cooled industrial chiller

Specification



Item

Model

HBC-5
Nominal cooling capacity Kcal/h 12212
  kw 14.2
Input power kw 5.25
Power supply 3PH 220~480V 50/60HZ
Refrigerant Type R22/407C/410A/134A
  Type of control capillary

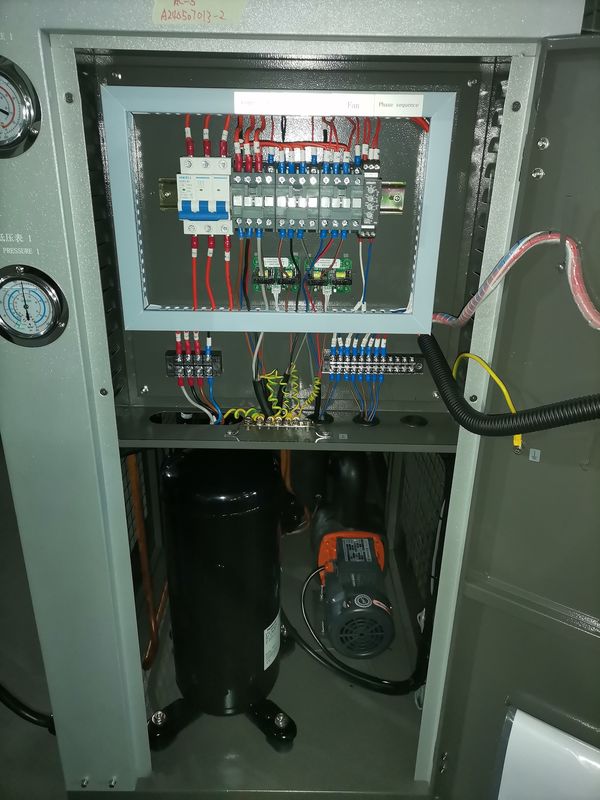

Compressor Type Hermetic scroll
  Power(kw) 4.32

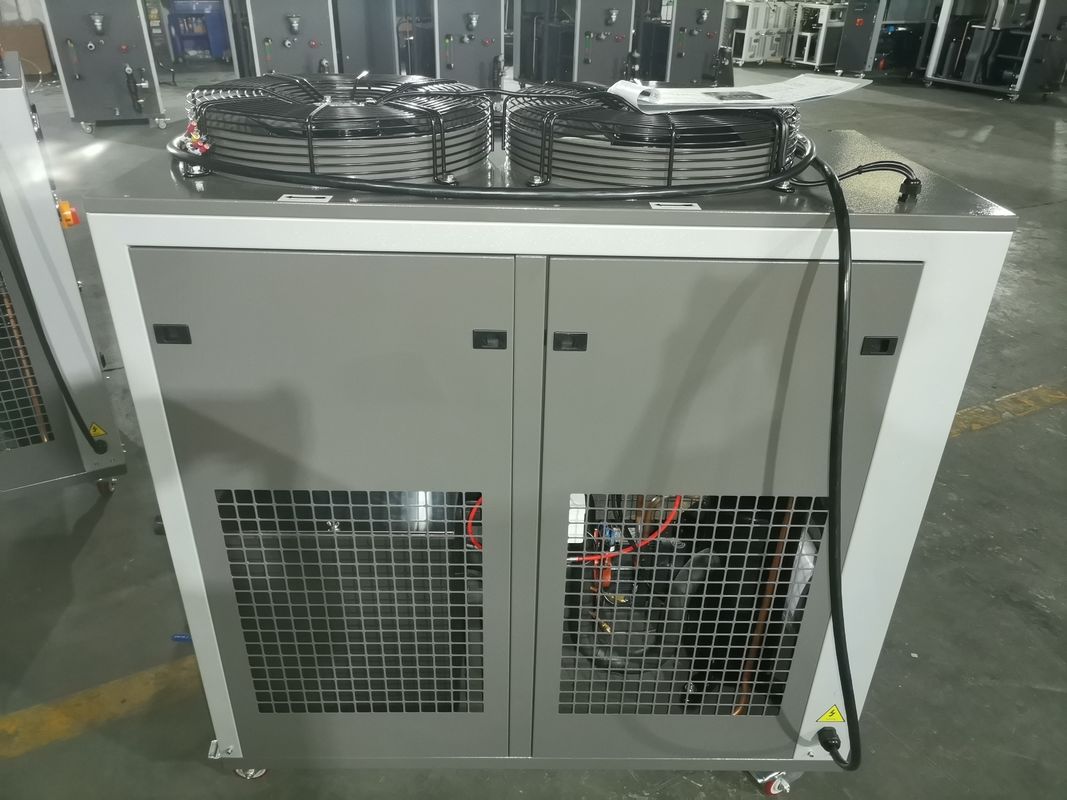

Condenser Type Finned copper tube + low noise outer rotor fan
  Power(kw) 0.38
  Cooling air flow(m3/h) 5000
Evaporator Type Shell and tube
  Chilled fluid flow(m3/h) 2.45
  Volume(L) 60

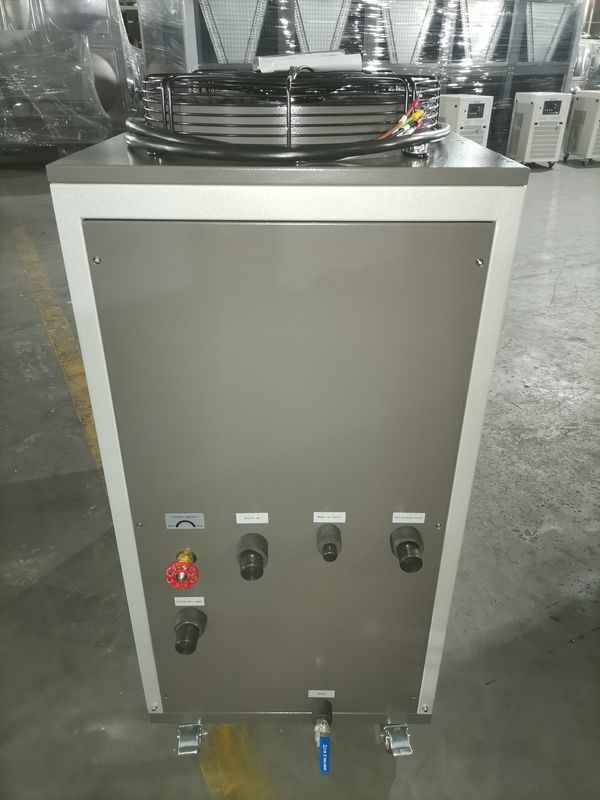

  Inlet/outlet pipe caliber(inch) 1"
Pump Power(kw) 0.55
  Flow (m3/h) 2.45
  Lift(m) 20
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Weight kg 190
Dimension mm 1140*560*1250




Why choose a chiller to cool the extrusion machine

  1. Rapid Cooling: A chiller can quickly cool the extruded material to the desired temperature, ensuring rapid solidification and shaping of the extruded products.
  2. Maintaining Product Quality: By controlling rapid cooling post-extrusion, it ensures dimensional accuracy and shape stability of the products, reducing deformations and defects.
  3. Enhancing Production Efficiency: Chiller systems enable continuous operation of the extrusion machine by eliminating the need for extended cooling periods, thereby boosting overall production efficiency.
  4. Energy Efficiency and Cost Savings: Compared to traditional air cooling methods, chillers typically provide more efficient cooling, reducing energy consumption and operating costs.
  5. Adaptability to Different Materials: Chillers can adjust cooling effects according to various extrusion materials and process requirements, ensuring adaptability and flexibility.



THE AFTER-SALE SERVICE OF ANGES CHILLER!

  1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
  2. After the commissioning, we will package the equipment by standard export package for shipment.
  3. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.



FAQ

1.How does a chiller system work?

Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.



2.How to calculate cooling capacity for chillers?

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)



3.How can we do for chiller maintenance ?

Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
