Screw Type Chiller
>

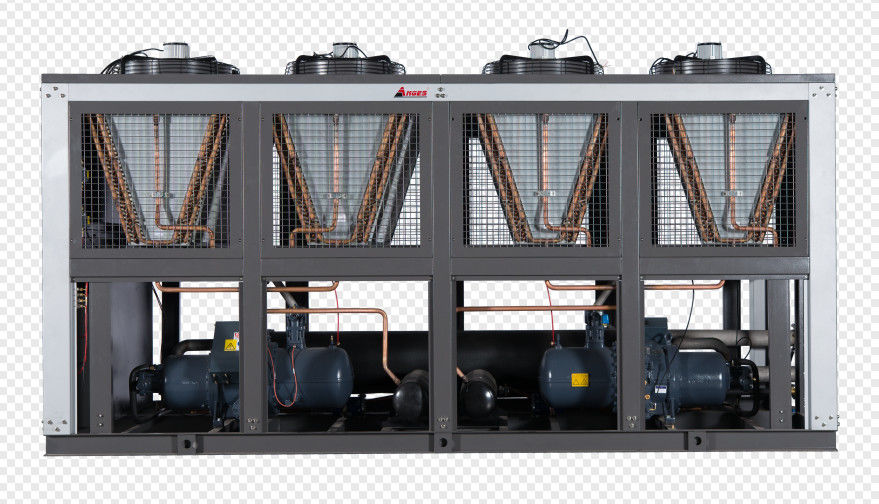

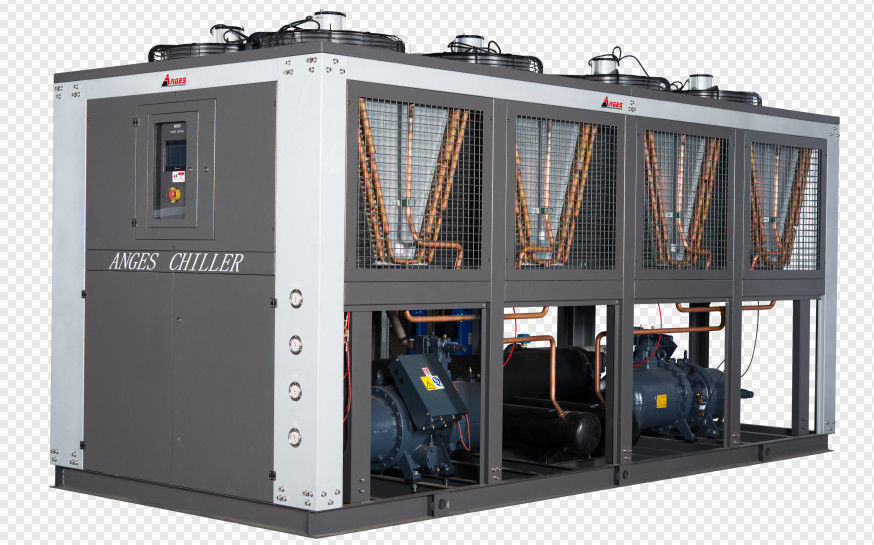

100hp Industrial Chiller Integrated System Semi Hermetic Screw Type

100hp Industrial Chiller Integrated System Semi Hermetic Screw Type

Brand Name: ANGES
Model Number: 100hp
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Expansion Valve:
Emerson
Input Power:
81kw
Cooling Type:
Air Cooled Screw Chiller
Evaporator Type:
Shell And Tube
Electrical Components:
Schneider
Filter:
Emerson
Compressor Quantity:
Double
Highlight:

100hp Industrial Chiller

,

Integrated System Industrial Chiller

,

Semi Hermetic Screw Type Industrial Chiller

Product Description

30HP Air Cooled Screw Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line



BOPP film has the advantages of light weight, non-toxic, odorless, moisture-proof, wide range of use, stable performance, efficient and energy-saving production, and the total thickness is reduced.

The generally used thickness is 20-40 μm, and the most widely used one is 20 μm.



Air Cooled Process Chiller Specification

Model

Parameter

AGS-100ADH
nominal cooling capacity kcal/h 282080
  kw 328
input power kw 81
Pump   Minamoto
power supply 3PH~380V/50HZ
refrigerant type R22
  refrigerating circuit 1
  type of control thermostatic expansion valve
compressor type hermetic screw
  quantity 2
  Power 37.4*2
  start-up mode Y-△
  capacity control 0-33-66-100
condenser type shell and tube
  cooling air flow (m3/h) 10500
  power(kw) 6
evaporator type shell and tube
  quantity 1
  chilled fluid flow (m3/h) 56.4
  inlet and outlet pipe diameter (inch) 4
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight kg 3340
Dimension mm 4200*2200*2383


How to Chiller cool film composite line?

  1. Cooling and winding:
  2. Let the composite film cool and set, and it will be smoother and wrinkle-free when rolled up.
  3. Let the adhesive cool to create greater cohesion, prevent relative displacement of the two substrates, and avoid wrinkling.



Benefit of industrial chiller applications

  1. Water chiller provide constant temperature and constant water flow chilled water to the production line, to increased production speed and ensure efficiency production.
  2. Industrial process chiller use to maintain constant and precise control of the process temperature.
  3. Industrial chillers help keep your equipment at a safe operating temperature preventing undesirable repair downtime that might slow or even halt production altogether.



How to select the model of the chiller ?

  1. In the production process, the injection molding machine needs to cool the mold to achieve rapid condensation of plastic, improve product quality, and improve production efficiency.

  2. Here, the chiller is indispensable. Chiller used in injection molding machine, through extrusion, blow bottle, thermoplastic, hydraulic system four steps to achieve rapid condensation of plastic.

  3. This shows the importance of the chiller to the injection molding machine. In the selection of chiller should pay attention to:

  4. In mold cooling, the choice of ice water energy depends on its specific heat capacity with the molding material, the temperature at the time of sol, the weight, and the temperature at the time of product release.

  5. In terms of temperature difference, the smaller the temperature difference, the more ice water flow is required to carry away the same heat, and the smaller the ice water flow is required
