Industrial Water Chiller
>

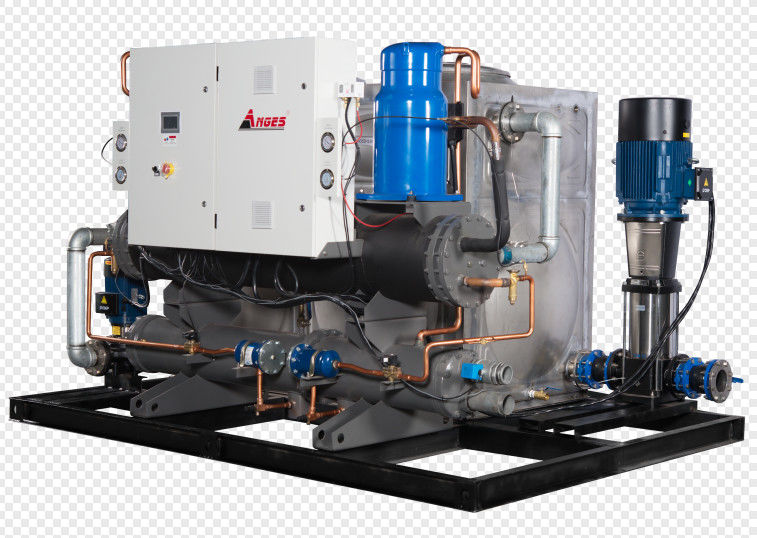

250hp Industrial Chiller Integrated System Semi Hermetic Screw Type

250hp Industrial Chiller Integrated System Semi Hermetic Screw Type

Brand Name: ANGES
Model Number: 250hp
MOQ: 1
Packaging Details: Plywood case
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Refrigerant:
R22/R134a/R407C/R410a
Max Temperature Control:
5 Degree To 35 Degree
Condenser Type:
Shell And Tube
Safety Protection:
High And Low Pressure Protection, Overload Protection, Anti-freezing Protection
Voltage:
380v/3phase/50hz
Shelf Life:
One Year
Input Power:
183kw
Condenser Fan Brand:
HanBell
Highlight:

Integrated System Industrial Chiller

,

Semi Hermetic Screw Industrial Chiller

,

250hp Industrial Chiller

Product Description

250HP Industrial Chiller Integrated System Semi-Hermetic Screw Type



250ton Screw Chiller 250ton Water Chiller Package Unit Central Chiller Hvac Water Cooled Chiller Package Outdoor Chiller

This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.


Item AGS-250WSH
nominal cooling capacity kcal/h 811066
kw 943.1
input power kw 183
max running current A 417.1
power supply 3PH-380V-50HZ
refrigerant type R22
type of control expansion valve
compressor type semi-hermetic screw
Power(kw)
start-up mode Y-△
capacity control 0-25-50-75-100
evaporator type shell and tube
chilled fluid flow (m3/h) 162.2
pipe diameter (inch) 6"



safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.

dimension mm 3890*1560*3160
net weight kg 3160
running weight kg 3420



Water chiller service from manufacturer


We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
1.All the chillers are provided with 12 months free maintenance service.
2.Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
3.If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
4.Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
5.Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
