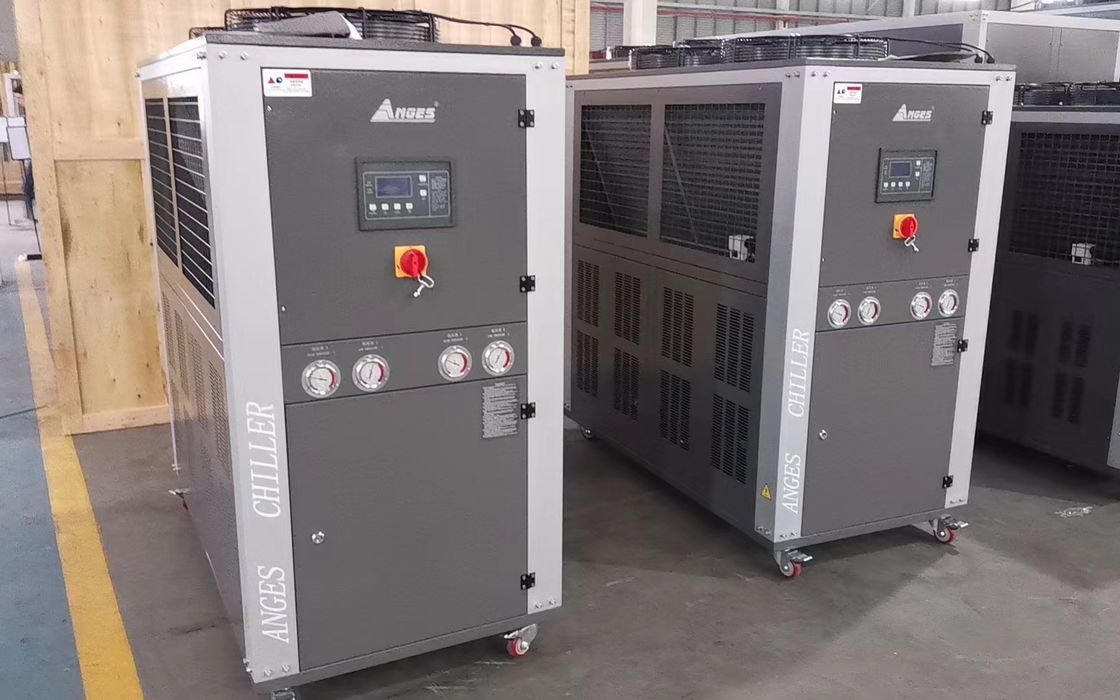

R22 10ton air-cooled type chiller for blow molding machine

R22 10ton air-cooled type chiller for blow molding machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Compressor Type:
Hemetic Scroll Type
Water Tank:
Temperature Range:
5℃ ~ 35℃
Industrial Cooling Solutions,Plastic; Rubber / Chemical Etc / Air-conditioning/ Laser Cutting
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
15 days
Payment Terms
T/T, L/C
Supply Ability
40 units per month
Product Description

10ton Air Cooled for Blow Moulding Chiller for Plastic Industry Mold Cooling Chiller


  Most plastic processes require cooling of some sort. Whether they are using injection molding, extruding plastic, blow molding, rotational molding, or thermoforming, all of these processes require cooling.

  The cleanest and most recommended method of cooling is using a plastics chiller. A plastics chiller is a refrigerated device that cools plastics throughout the manufacturing process.


Injection Molding Chiller Specification


nominal cooling capacity kcal/h 24940
  kw 29
input power kw 11.22
power supply


refrigerant type R22
  type of control Expansion valve
compressor type hermetic scroll
  power(kw) 8.8
condenser type finned copper tube + low noise outer rotor fan
  cooling air flow(m3/h) 10000
evaporator type water tank with coil
  chilled fluid flow(m3/h) 5
  volume(L) 200
  inlet and outlet pipe diameter (inch) 1-1/2"
pump power (kw) 1.5
  flow rate(m3/h) 5
  lift(m) 20
safety protection compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing
weight kg 450
dimension mm 1530*780*1630

Nominal cooling capacity is according to:

Inlet chilled fluid temperature:17℃, Outlet chilled fluid temperature: 12℃.

Inlet cooling air temperature: 30℃, Outlet cooling air temperature:35℃.

The temperature range of chilled fluid is from 5℃ to 35℃.

The air cooled chillers are better to run while the ambient temperature is below 35°C.If not, the chillers will have high pressure alarm.Air-cooled chillers designed for high ambient temperatures are excluded.



Benefit of Plastic Process Chiller Applications


  A chiller provides consistent temperature and pressure to your industrial process. Eliminating temperature and pressure variables simplifies the process development and optimization, ensuring the highest quality product. Instead of a wasteful, single-pass-through system, a chiller recirculates the cooling water.



Please tell these basic information so we can better quote you


1. your supply voltage (for example: 3HP380V220HZ)


2. the refrigerant you prefer


3. cooling capacity you need


How to ensure your product with good quality?


1. Since 2004, we specialize in the production of industrial chiller, located in Shenzhen, China, our quality priority. All products go through a rigorous multi-inspection process to give customers multiple guarantees, and most accessories are made from world-class brands such as Danfoss, Copeland, Schneider Electric Components, etc.
2. After the installation of the industrial chiller, we will fill nitrogen for 24 hours of pressure maintaining test to check whether there is leakage in the cooling system of the chiller.
3. During the chiller test, we will provide test videos and pictures.
4. After the completion of testing and commissioning of the chiller, the chiller unit shall be cleaned and labeled, and then inspected before leaving the factory. The chiller shall be packed with plywood to ensure that the chiller is in good condition during transportation.
