60HP Water Cooled Screw Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line

60HP Water Cooled Screw Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line

Industrial Process Water Chillers

Water Cooled Screw Chiller For Printing

60HP Water Cooled Screw Chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Type Of Condenser:
Shell And Tube
Total Input Power:
Control System:
Condenser Type:
Shell And Tube
Compressor Power:
Net Weight:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
L/C, T/T
Product Description

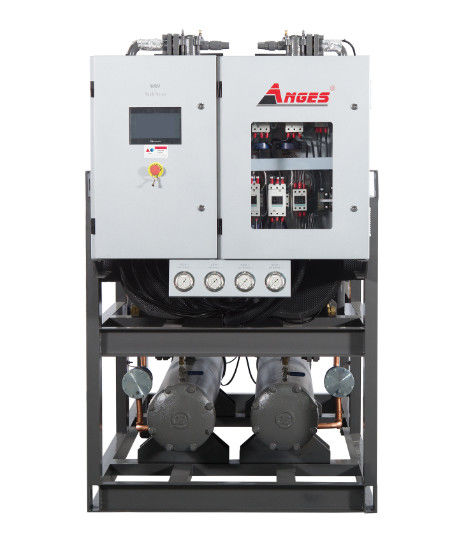

60HP Industrial Chiller Integrated System Semi Hermetic Screw Type


60ton Screw Chiller 85ton Water Chiller Package Unit Central Chiller Hvac Water Cooled Chiller Package Outdoor Chiller
This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.

nominal cooling capacitykcal/h173376
input powerkw42.9
max running currentA97.8
power supply3PH-380V-50HZ
type of controlexpansion valve
compressortypesemi-hermetic screw
start-up modeY-△
capacity control0-25-50-75-100
evaporatortypeshell and tube
chilled fluid flow (m3/h)26.4
pipe diameter (inch)3"
condensertypeshell and tube
cooling water flow (m3/h)42
pipe diameter (inch)3"
safety protectioncompressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
net weightkg1120
running weightkg1270
Featurers of water cooled screw refrigeration chiller

1. Brand semi-close double-screw compressor and long service-life of bearing ensure long time operation, and it is
equipped with high-efficient motor that gives compressorhigh efficiency.

2. The condenser and evaporator both can meet therequirement of national standard, with high-effcient heattransfer effect, convenient service and maintenance.

3. Equipped with programmable logical controller to control viapanel for convenient adjustment.

4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.

5. Simple installation and operation: This 120ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.


Water chiller service from manufacturer

We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
1.All the chillers are provided with 12 months free maintenance service.
2.Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
3.If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
4.Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
5.Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
