| Brand Name: | ANGES |
| Model Number: | 60HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

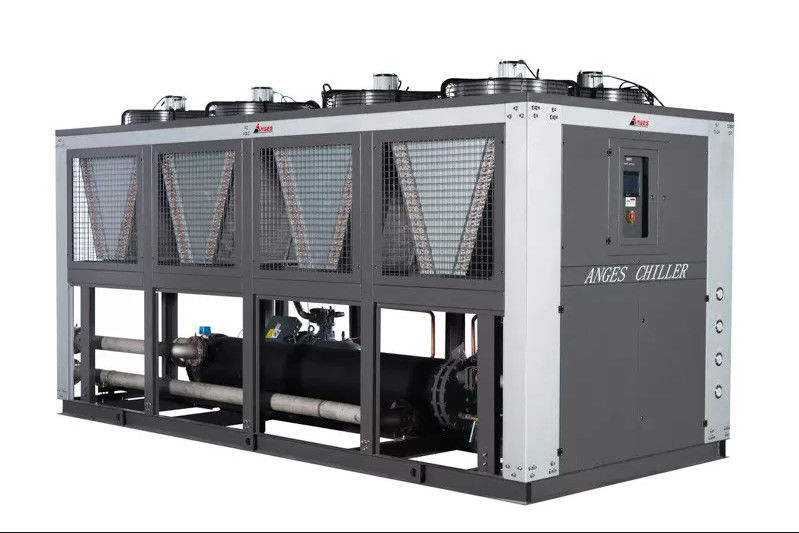

60HP Air Cooled Screw Chiller Industrial Process Water Chillers For Printing And BOPP Film Lamination Line
BOPP film has the advantages of light weight, non-toxic, odorless, moisture-proof, wide range of use, stable performance, efficient and energy-saving production, and the total thickness is reduced.
The generally used thickness is 20-40 μm, and the most widely used one is 20 μm.
Air Cooled Process Chiller Specification
|
Model Parameter |
AGS-060ASH | |
| nominal cooling capacity | kcal/h | 151188 |
| kw | 175.8 | |
| input power | kw | 61 |
| Max. Running current | A | 138.3 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 1 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 51.7 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow (m3/h) | 63000 | |
| power(kw) | 9 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 30.2 | |
| inlet and outlet pipe diameter (inch) | 3 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 1930 |
| Dimension | mm | 2400*2000*2180 |
How to Chiller cool film composite line?
Benefit of industrial chiller applications
How to select the model of the chiller ?
In the production process, the injection molding machine needs to cool the mold to achieve rapid condensation of plastic, improve product quality, and improve production efficiency.
Here, the chiller is indispensable. Chiller used in injection molding machine, through extrusion, blow bottle, thermoplastic, hydraulic system four steps to achieve rapid condensation of plastic.
This shows the importance of the chiller to the injection molding machine. In the selection of chiller should pay attention to:
In mold cooling, the choice of ice water energy depends on its specific heat capacity with the molding material, the temperature at the time of sol, the weight, and the temperature at the time of product release.
In terms of temperature difference, the smaller the temperature difference, the more ice water flow is required to carry away the same heat, and the smaller the ice water flow is required
|
|
