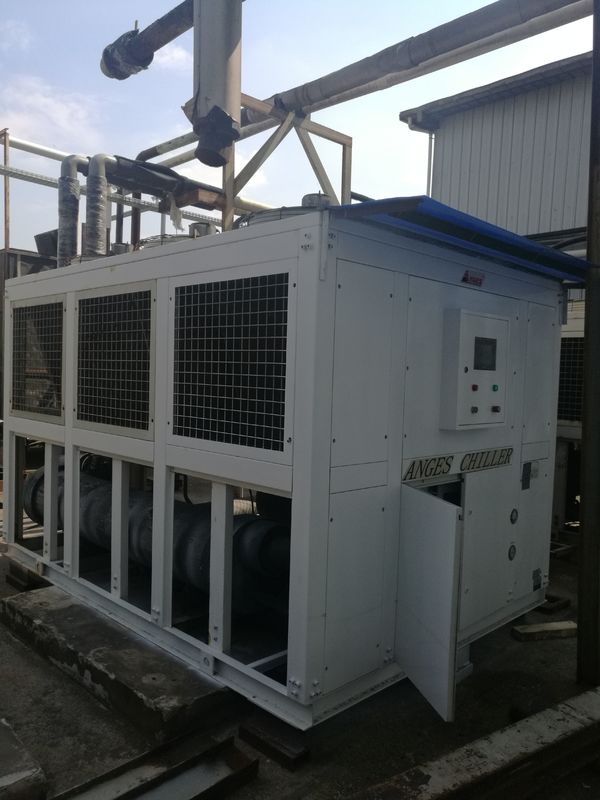

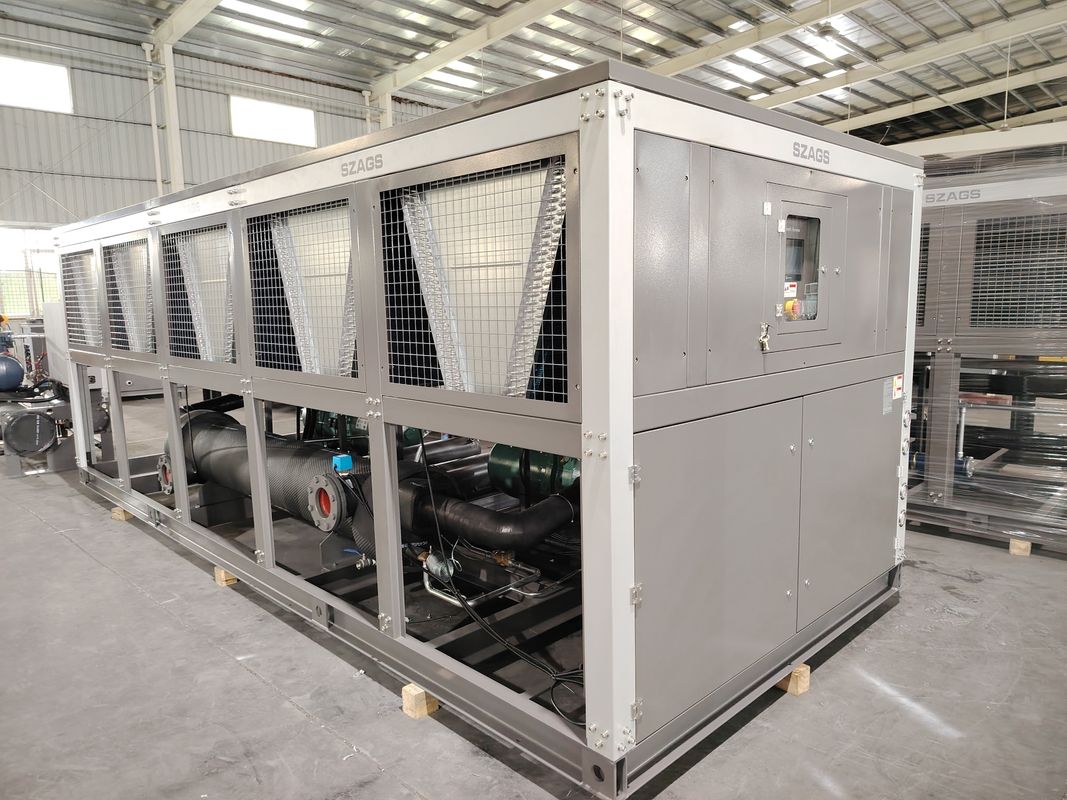

240hp Semi Hermetic Screw Type Chiller For Plastic Material Production

240hp Semi Hermetic Screw Type Chiller For Plastic Material Production

240hp screw type chiller

plastic material production screw type chiller

240 ton air cooled screw chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Cooling Capacity:
240 Ton
Compressor Type:
Semi-hermetic Screw
Shell And Tube
Aluminum Finned Copper Tube + Axil Fan
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

240HP Air Cooled Water Chiller System Semi Hermetic Screw Compressor Chiller For Plastic Material Production
During the plastic extrusion process, the plastic raw material needs to be heated to melt, and heating will cause the temperature of the plastic to continue to rise.

If the plastic is extruded directly from the die, the high-temperature plastic is easily deformed and difficult to maintain the required shape and size.

Therefore, cooling is required during the extrusion process to control the temperature of the plastic so that it can maintain the required shape and size after extrusion.


nominal cooling capacitykcal/h658416
input powerkw249
Max. Running currentA567.5
power supply3PH~380V/50HZ
 refrigerating circuit1
 type of controlexpansion valve
compressortypesemi-hermetic screw
 start-up modeY-△
 capacity control0-25-50-75-100
condensertypeair cooled type finned copper tube
 cooling air flow (m3/h)250000
evaporatortypeshell and tube
 chilled fluid flow (m3/h)131.7
 inlet and outlet pipe diameter (inch)6
safety protectioncompressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weightkg5300

Cooling methods in plastic extrusion processing
There are various cooling methods in plastic extrusion processing, common ones include: water cooling, air cooling, vacuum cooling, etc.
1.Water cooling is the most commonly used method. It can cool the extruded plastic material by setting a water cooler under the die head and passing the cooling water through the die head.
2.Gas cooling reduces the temperature of the plastic by blowing cooling gas to the plastic material.
3.Vacuum cooling is to install a vacuum pump above the die head to move the extruded plastic material into a vacuum chamber for cooling.


Why Choose Anges Air Cooled Screw Chiller?

  1. Anges air-cooled screw chillers is ideal for commercial and industrial facilities. It can generate chilled water temperature between -25 degrees Celsius to 30 degrees Celsius.
  2. Air cooled chiller is powered using a semi-hermetic screw compressor and comes with the SIEMENS PLC controller.
  3. Anges Chiller has more than 20 years of industry experience when it comes to the manufacture of chiller systems in China. Thus, we are the one-stop solution for your chiller requirements.
  4. Air cooled screw  chiller system offers easy installation, easy maintenance, and quality design.
  5. If you have more questions about water chillers, free to contact us.

The benefits of using air-cooled chillers:

  1. No cooling towers.
  2. Better environmental stability-no water wastage.
  3. Low maintenance costs.
  4. Easier to operate and control-tower freezing and tower bypass absent.
  5. Chemical costs avoided.
  6. Water costs avoided, especially in cities.
