Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine

Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine

Glycol Water Cooled Chiller

Modular Water Cooled Chiller

Blowing Machine Glycol Water Chiller

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water-cooled Type
Cooling Capacity:
50 Hp
Shell And Tube
Shell And Tube
Brand New
Dimension(l* W*h):
12 Months
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
25 days
Payment Terms
T/T, L/C, T/T, L/C
Product Description

50ton industrial water chiller machine Portable Chiller Water Cooled Scroll Chiller 50HP Water Cooled Industrial Chiller Water Chilling Plant​


Water cooled chiller


Anges chiller is divided into two types: Air-cooled chiller and Water-cooled chiller.

Water chiller is divided into a low-temperature chiller and a normal-temperature chiller in temperature control.

The normal temperature is generally controlled the water within the range of 0 to 35 degrees.

The temperature control of the cryostat is generally in the range of 0 degrees to minus 30 degrees.


Specification for chilled water system




nominal cooling capacity Kcal/h 138632
  kw 161.2
input power kw 35.2
power supply 3PH~380V/50HZ
refrigerant type R22
  type of control Expansion valve
compressor type Hermetic scroll type
  Power (kw) 31.2
condenser type Shell and tube
  Cooling water flow(m3/h) 33.4
  Inlet/outlet pipe caliber(inch) 3
evaporator type Shell and tube
  Chilled water flow(m3/h) 27.8
  Tank volume(L) 480
  Inlet/outlet pipe chiller(inch) 3
Water pump Power(KW) 4
  Lift(m) 22
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 1700
Dimension mm 2400*1100*1980
Featurers for portable water cooled scroll chiller
  1. This 50Tr water chiller use four refrigerant circuits with 4 units famous brand scroll compressor.Scroll compressor has the advantages of small volume, low noise, light weight, small vibration, low energy consumption, long life and reliable operation.
  2. This50ton water cooled chiller can be a central chiller to cool several processes,easy installation and operation with lower cost.
  3. High efficient shell and tube type evaporator,built-in stainless steel 304 water tank,easy to install and use.
  4. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  5. This industrial water-cooled chiller equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-35C.
  6. This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.

Benefits of an industrial water chiller

  1. The ability to maintain constant and precise control of the process temperature.
  2. The cooling fluid can be delivered directly to the application heat source to increased production speed and ensure efficiency production
  3. Accurate temperature control capability, to ensure the highest quality final products.
  4. Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.

Chiller Unit Features and Advantages:

  1. Cooling Capacity ranges from 2 Ton to 30 Ton
  2. Temperature control range from 5°C to 35°C
  3. Panasonic/Danfoss/ HANBELL/Copeland branded Scroll and screw-type compressors
  4. Water-cooled condenser with cooling tower
  5. Compact design, energy saving, easy maintenance
  6. Warranty up to 12 months after purchase

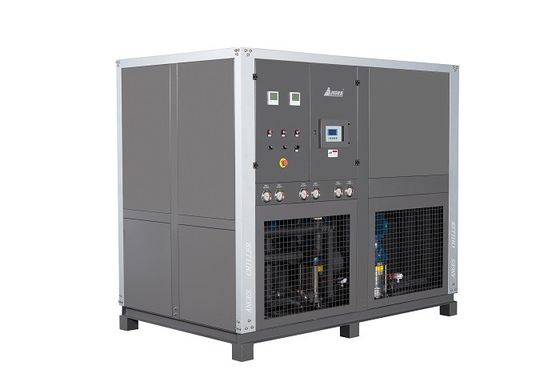

Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine 0Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine 1

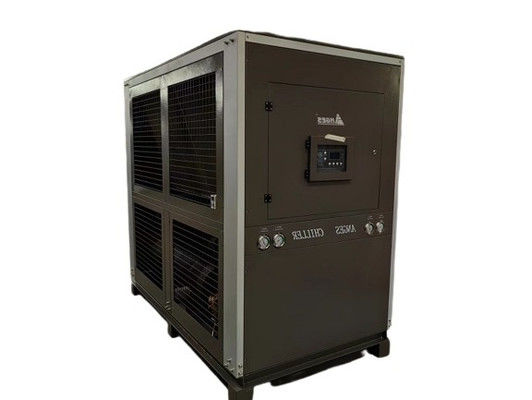

Glycol Water Cooled Chiller Modular Chiller Plant For Film Blowing Machine 2
