Integrated Industrial Chiller Integrated System For Injection Extruder Blowing

Integrated Industrial Chiller Integrated System For Injection Extruder Blowing

Integrated Industrial Chiller Integrated System

Water Cooled Industrial Chiller Integrated System

Extruder Water Cooled Chiller System

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Water-cooled Screw Chiller
Cooling Capacity:
Shell And Tube
Shell And Tube
Brand New
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
25 days
Payment Terms
T/T, L/C
Product Description

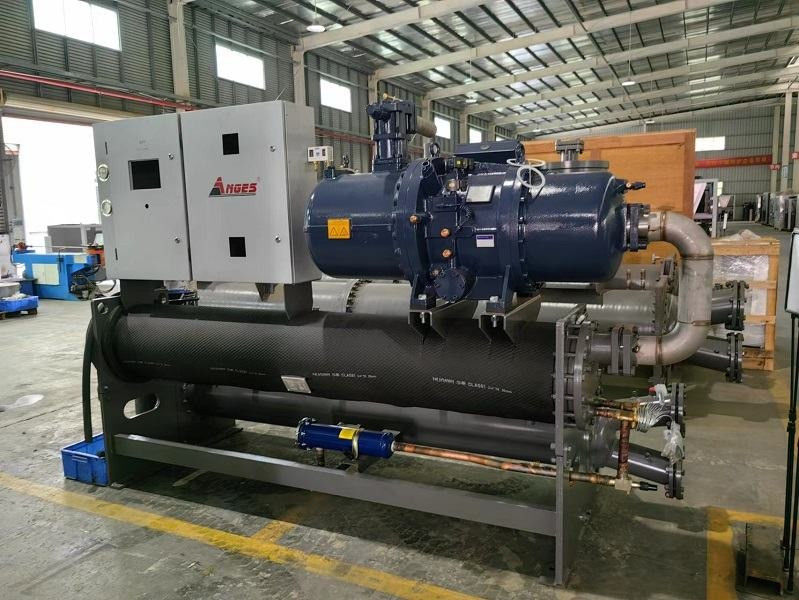

50HP Integrated Screw Type Water Chiller


50ton Screw Chiller 50ton Water Chiller for injection/extruder/blowing industry


The chiller is an integrated industrial cooling unit consisting of a chiller, water pump, water tank and control panel.The integrated water cooling chiller is simple to install and easy to operate, which greatly reduces the installation cost.



nominal cooling capacity kcal/h 161422
kw 187.7
input power kw 49
max running current A 110.5
power supply 3PH-380V-50HZ
refrigerant type R22
type of control expansion valve
compressor type semi-hermetic screw
Power(kw) 39
start-up mode Y-△
capacity control 0-33-66-100
evaporator type shell and tube
chilled fluid flow (m3/h) 32.3
pipe diameter (inch) 3
condenser type shell and tube
cooling water flow (m3/h) 40.3
pipe diameter (inch) 3”
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Tank L 1500
External circulation pump Power(kw) 5.5
Lift(m) 24.5
Internal circulation pump Power(kw) 4
Lift(m) 20
dimension mm 3200*2000*1883
net weight kg 1860
running weight kg 3460
Featurers of  water cooled screw refrigeration chiller

1. Adjustable water temperature: The output chilled water temperature of the water-cooled chiller ranges from +5 ℃ to +30℃. Water temperature and flow rate can be specified and regulated within the control range.

2. Stable performance: Angus package-type water-cooled screw chiller, using the original famous brand semi-closed screw compressor, sufficient cooling capacity, stable performance, good quality. Simple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.

3. Power saving and energy saving: screw refrigerator capacity control can use four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, according to the actual use of heat load effectively save energy, so as to effectively save energy.

4. Long service life: shell and tube evaporator and condenser, simple welding structure, strong structure, high quality, compact structure, long service life and so on.

5. Simple installation and operation :120 tons screw compressor industrial chiller system, equipped with famous brand water pump, large flow, high efficiency, durable. Small size, convenient installation, simple operation.



Water chiller service from manufacturer


We are industrial chiller manufacturer, we could provide online/video technical support, on-site service is available in some areas.

Field service will be provided by our chiller dealers in Indonesia, Chile, Thailand, Pure, Malaysia, Australia, UAE, Israel, Egypt, etc.

1. All chiller units are provided with 1-year free maintenance service.

2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.

3. If necessary, after-sales engineers can provide door-to-door service, which shall be confirmed by both parties through communication. In some areas, local dealers can provide quick and convenient service.

4. Promptly provide accessories required by air cooler and water cooler to ensure normal use by customers. If necessary, both parties can provide part of the wearing parts for standby after confirmation.

5. Out-of-warranty maintenance service for chiller, lifelong tracking maintenance, equipment accessories at cost price.
