Screw Type Chiller
>
75 Ton Water Cooled Central Chiller

75 Ton Water Cooled Central Chiller

Brand Name: ANGES
Model Number: 75hp
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Name:
Water Cooled Screw Chiller
Capacity:
75hp
Compressor:
Screw Type
Compressor Power:
56.1kw
Internal Pump:
100m³/hr, 2bar
External Pump:
100m³/hr, 2bar - 8bar
Refrigerant:
R22, R407c, R134a
Expansion Valve:
Danfoss Or Emerson
PLC:
Siemens
Chiller Service:
Online Support, Video Technical Support, Site Service In Some Areas
Highlight:

75 Ton Water Cooled Central Chiller

,

Water Cooled Central Chiller 75hp

,

75hp centralised chilled water system

Product Description

High Effective Screw Chiller 75ton Water Chiller Central Chiller Low Noise Chiller Package Outdoor Chiller

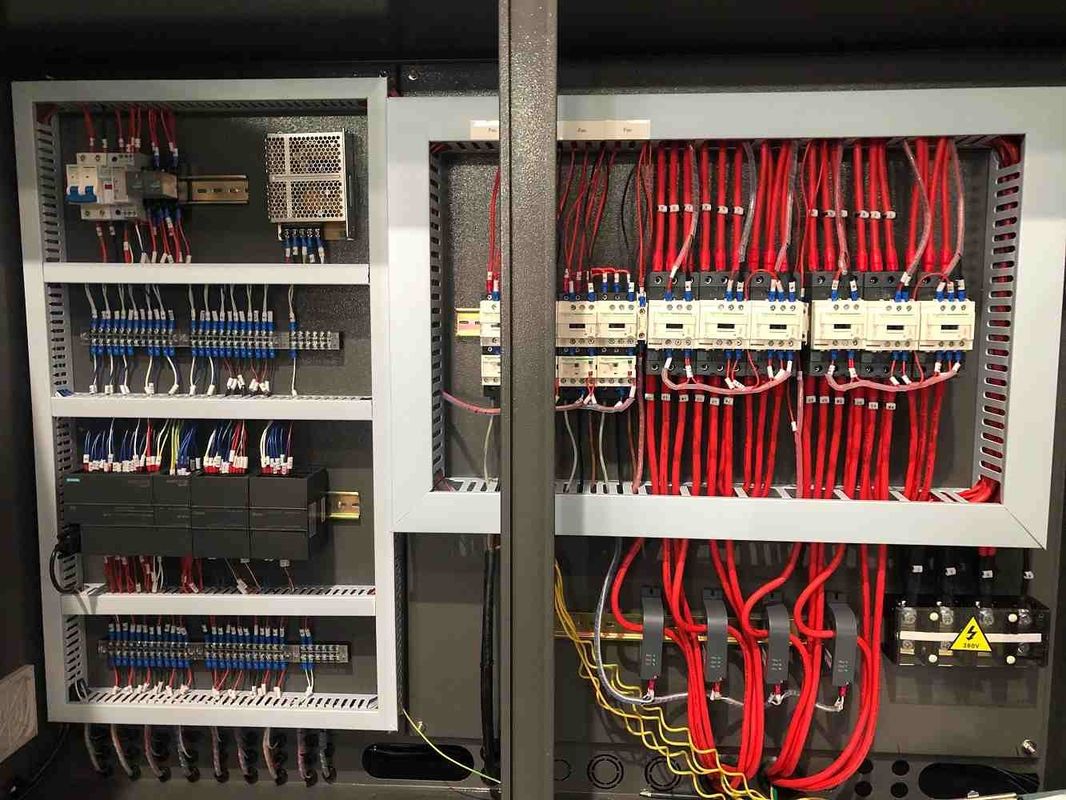

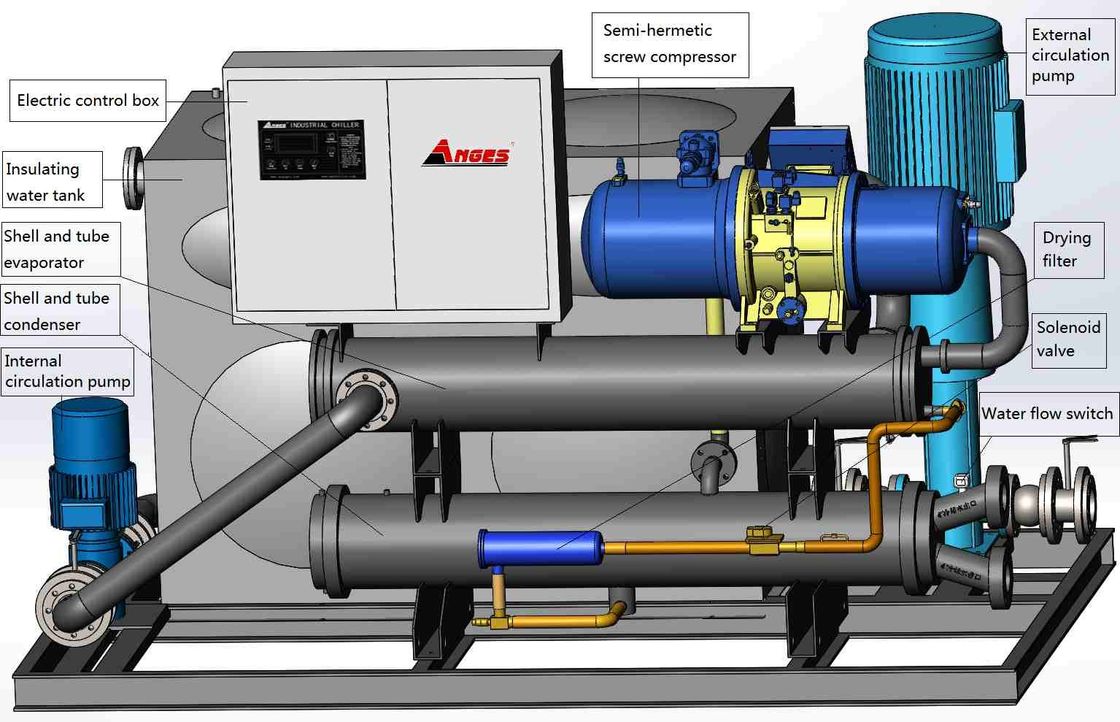

This water chiller package unit is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.



Item

AGS-75WSHI
nominal cooling capacity kcal/h 231924
  kw 269.7
input power kw 71
max running current A 162
power supply 3PH-380V-50HZ
refrigerant type R22
  type of control expansion valve
compressor type semi-hermetic screw
  Power(kw) 56.1
  start-up mode Y-△
  capacity control 0-25-50-75-100
evaporator type shell and tube
  chilled fluid flow (m3/h) 46.4
  pipe diameter (inch) 4
condenser type shell and tube
  cooling water flow (m3/h) 58
  pipe diameter (inch) 4
safety protection compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection.
Tank L 3000
External circulation pump Power(kw) 7.5
  Lift(m) 24.1
Internal circulation pump Power(kw) 7.5
  Lift(m) 22
dimension mm 3600*2250*1995
net weight kg 2185
running weight kg 5230

Featurers of  water cooled screw refrigeration chiller
  1. Large capacity.Anges water-cooled screw chillers are large cooling capacity from 120kwand 1600kw. The chilled water temperature provided is within a range of 5℃-30℃.
  2. Adjustable water temperature: Water cooled type chiller outptu chilled water from +5 to +30℃.Water temperature and flow rate can be designated and adjustable in control range.
  3. Stable performance: Anges packaged water cooled screw chiller equipted original famous brand Semi-hermetic screrw compressor adopted,feature sufficient cooling capacity,stable performance,and excellent quality. Smple structure, less moving parts, low failure rate, high safety factor, large cooling capacity.
  4. Power saving and energy saving: Screw chiller capacity control can be four (100%-75%-50%-25%) or three (100%-66%-33%) automatic adjustment ability, which can effectively save energy consumption according to the actual use of heat load, so as to effectively save energy.
  5. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
  6. Simple installation and operation: This 120ton screw compressor industrial water chiller system equipped famous brand water pump,with large flow,high efficiency and durability. Small size, easy to install, and simple to operate.

The difference between Air-cooled chiller and Water-cooled chiller

An air-cooled chiller refers to a chiller system that uses the ambient air surrounding the condensing unit to cool and condense the refrigerant back into a liquid. In other words, the air cooled chillers use fans for chiller's refrigerant dissipate heat, but the water-cooled needs to install cooling tower for operation.Water-cooled chillers are more efficient with the disadvantage of having critical maintenance demands included water treatment, chiller condenser-tube cleaning, tower mechanical maintenance, and freeze protection.



Water chiller service from manufacturer

We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.

Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
