240HP Air Cooled Screw Chiller CE Ndustrial Process Water Chillers

240HP Air Cooled Screw Chiller CE Ndustrial Process Water Chillers

240HP Air Cooled Screw Chiller

Air Cooled Screw Chiller CE

240HP industrial process water chillers

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Air-cooled Water Chiller Unit
Cooling Capa City:
R22, R407c, R134a
Dual Screw Compressor
Tube In Shell Evaporator
Air-cooled Fin Condenser
After-sales Service Provided:
Online Support,Video Technical Support,Overseas Third-party Support Available
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

Air Cooled Screw chiller Air Screw Chiller Water Chiller Industrial Water Chiller Process Chiller Process Cooling Industrial Chiller


What Is a screw chiller?


Screw chiller is a chiller with screw compressor and has more cooling power than the scroll chiller.Air cooled screw chillers are typically available in 40 to 400 tons, higher efficiency and reliability compared to scroll compressor.It's used in both water and air chillers and are best for small to medium cooling loads.


Basically,scroll compressor is suitable for chillers under 60 tons( base on cold water supply in a range of 5-30 ℃). If the cooling capacity is more then 40 tons, then suggest a screw compressor.We will also recommend suitable models according to your needs.


We have the rich experience Research & Development group and exquisite technology to custom-made a suitable water chiller solutions for customers.


Air cooed screw water chiller specification





nominal cooling capacity kcal/h 658416
  kw 765.6
input power kw 249
Max. Running current A 567.5
power supply 3PH~380V/50HZ
refrigerant type R22
  refrigerating circuit 1
  type of control expansion valve
compressor type semi-hermetic screw
  quantity 1
  Power 106.5×2
  start-up mode Y-△
  capacity control 0-25-50-75-100
condenser type air cooled type finned copper tube
  cooling air flow (m3/h) 250000
  power(kw) 36
evaporator type shell and tube
  quantity 1
  chilled fluid flow (m3/h) 131.7
  inlet and outlet pipe diameter (inch) 6
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight kg 5300
Dimension mm 4400*4400*2420

Industrial process chiller featurers

  1. Largest capacity: Industrial air cooled screw chiller cooling capacity is up to 240 ton.
  2. Adjustable water temperature: Chilled water temperature provided is within a range of 5℃-30℃.

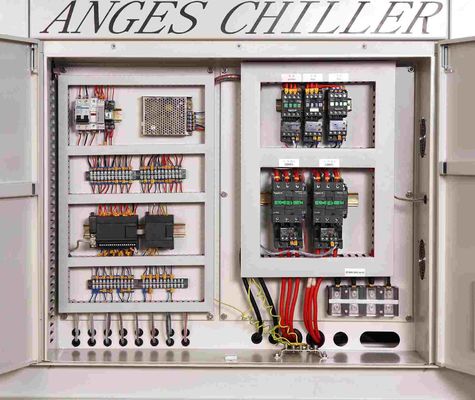

  3. Power saving and energy saving: The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.
  4. Long service life: Shell and tube evaporator and condenser, the welded structure is simple, sturdy structure, high quality, compact structure, long life and so on.
  5. Lower installation cost : Air-cooled screw chiller does not need to be equipped with cooling pump, cooling tower and other auxiliary equipment, can save a lot of materials and engineering installation costs, and even do not need to set up the machine room.

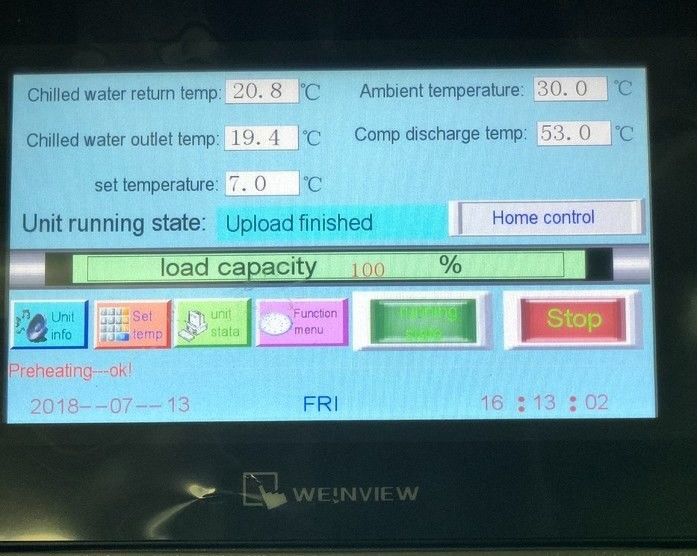

  6. Simple operation: Air-cooled screw chillers use SIEMENS PLC program control system, human-computer interface with large LED touch screen panel for precise control.

Benefit of industrial chiller applications

  • Provide constant temperature and constant water flow chilled water to the production line, to increased production speed and ensure efficiency production.
  • Accurate temperature control capability, the freezing temperature can be accurate to ±0.1, to ensure the highest quality final products.
  • The cooling fluid is recirculated to reduce waste and cost.
  • Water chiller systems prevent damage to heat-sensitive industrial components preventing undesirable repair downtime that might slow or even halt production altogether.

Water chiller service from manufacturer

  1. All the chillers are provided with 12 months free maintenance service.
  2. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  3. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  4. Provide the air chiller and water chiller required parts quickly to ensure the normal use of customers.If necessary, part of the wearing parts can be provided for backup after confirmation by both parties.
  5. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.

How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
