Low Temperature Chiller
>

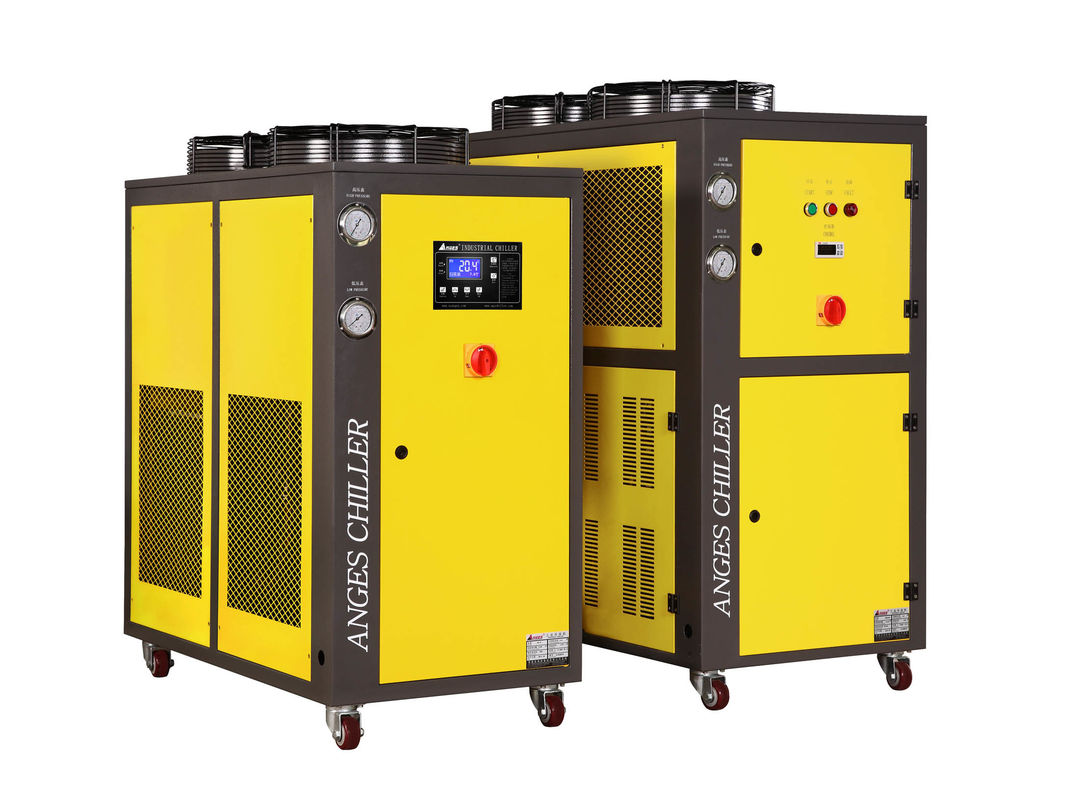

8HP Low Temperature Water Cooled Chiller Water Glycol Cooling System

8HP Low Temperature Water Cooled Chiller Water Glycol Cooling System

Brand Name: ANGES
Model Number: 8HP
MOQ: 1
Packaging Details: Plywood case
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
China
Refrigerant:
R404a
Cooling Capacity:
4.2kw
Compressor:
Hermetic Scroll Or Piston Compressor
Condenser:
Finned Copper Tube
Evaporator:
Plate Heat Exchanger
Condition:
Brandnew
Name:
Glycol Water Chiller
Application:
Industrial Cooling
Highlight:

8HP low temperature water cooled chiller

,

low temperature water cooled chiller 8HP

,

8HP water glycol cooling system

Product Description

Glycol Water Chiller Unit Glycol Cooler Brine Chiller Water Cooled Glycol Chiller Manufacturer Glycol Water Cooling Chiller



Glycol Water Chiller - Low-Temperature Chillers

Low temperature chiller is a kind of water cooling equipment, it can provide a constant temperature, constant current, constant pressure of a cooling equipment. The glycol chiller water is between -5℃ and -40℃ and the chilled water will be transported to the equipment or products that need cooling through chiller pump.



Application

Industrial glycol water chiller unit is used to cool the hot parts of the equipment, so that the equipment can work normally at low temperature. Used in Beverage filling, spindle cooling, CNC machine tools, grinding miller, reaction system, welding machine, cutting machine and other equipment, temperature adjustment range can be 40 degrees below zero.



Specification

Model

AC-8L
nominal cooling capacity kcal/h 3612
kw 4.2
input power kw 6.98
power supply 3PH~380V 50HZ
refrigerant type R404a
type of control thermostatic expansion valve
compressor type hermetic scroll(piston)
power(kw) 5
condenser type finned copper tube + low noise outer rotor fan
evaporator type Plate
chilled fluid flow (m3/h) 11.4
inlet and outlet pipe diameter (inch) 1
pump power (kw) 1.5
lift(m) 20
safety protection compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, antifreezing
dimension mm 1300*780*1310
weight kg 310

Note:

The nominal cooling capacity is according to: Inlet chilled fluid temperature: -20℃,outlet chilled fluid temperature: -25℃



Features

1.The compressor of the unit adopts the medium-low temperature compressor.
2.Use refrigerant such as R404A, R410a or R407C to meet the requirements of refrigeration temperature and environmental protection.
3.It can provide the process chilled water between -5℃ and -40℃.
4.A variety of secondary coolers (chilled water) can be selected, glycol aqueous solution, alcohol mixed solution and other alcohol secondary coolers, can also be designed according to the corrosion requirements of the evaporator, using calcium chloride aqueous solution.
5.According to the 24 hours non-stop operation design, can meet all kinds of continuous production process with cold source.
6.The unit can be equipped with water tank and circulating water pump according to the cooling capacity, without cooling tower and cooling water pump, easy installation and maintenance.
7.Equipped with all kinds of safety protection devices, stable performance, low noise, long service life, simple operation; The use of liquid crystal display man-machine interface, simple and convenient operation, operation at a glance.



The proportion of Ethylene Glycol Aqueous Solution of glycol water chiller unit

Operating temperature Concentration Density Specific heat capacity Heat conductivity Viscosity Freezing point
% ×10³ Kg/m³ KJ/(kg.k) W/m.k Pa.s
0 25 1.03 3.834 0.511 3.8 -10.6
-10 35 1.063 3.561 0.4726 7.3 -17.8
-20 45 1.08 3.312 0.441 21 -26.6
-30 55 1.097 2.975 0.3725 90 -41.6
