| Brand Name: | ANGES |
| Model Number: | 120HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |

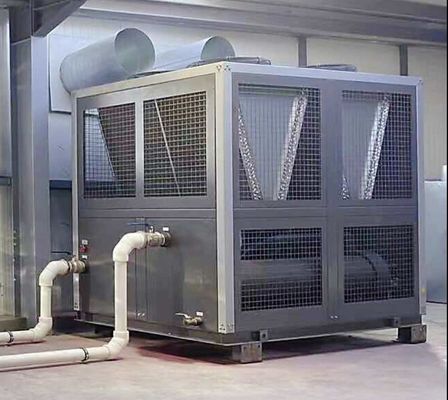

Procerss Chiller Capacity 120ton Modular Air Cooled Chiller Circulating Water Cooling Screw Compressor Water Chiller
Industrial process chillers help keep your equipment at a safe operating temperature and cool your components during processes, such as plastic injection ,plastic extruding ,bottle blowing, film blowing and many other thermoplastic materials that need to be heated to their molten temperature and then be solidified through cooling water from industrial chiller.
Why process cooling?
In many industrial processes, heat load is a component that must be carefully controlled. The process chillers are good at cooling down liquids that circulate in production process. They will maintain a set temperature. Once a set temperature is met, the cooled liquid will circulate through the equipment and lower the temperature for the process.
Procerss Chiller Specification
|
Model Parameter |
AGS-120ADH | |
| nominal cooling capacity | kcal/h | 302376 |
| kw | 351.6 | |
| input power | kw | 112 |
| Max. Running current | A | 255.3 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 1 | |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 47×2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow (m3/h) | 122000 | |
| power(kw) | 18 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 60.5 | |
| inlet and outlet pipe diameter (inch) | 5 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 3850 |
| Dimension | mm | 4400*2240*2720 |
Inlet chilled fluid temperature:17℃; Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃; Outlet cooling air temperature:35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The machine can be used while the ambient temperature is below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.
How to select the model of the chiller ?
|
|
| Brand Name: | ANGES |
| Model Number: | 120HP |
| MOQ: | 1 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T, L/C |
Procerss Chiller Capacity 120ton Modular Air Cooled Chiller Circulating Water Cooling Screw Compressor Water Chiller
Industrial process chillers help keep your equipment at a safe operating temperature and cool your components during processes, such as plastic injection ,plastic extruding ,bottle blowing, film blowing and many other thermoplastic materials that need to be heated to their molten temperature and then be solidified through cooling water from industrial chiller.
Why process cooling?
In many industrial processes, heat load is a component that must be carefully controlled. The process chillers are good at cooling down liquids that circulate in production process. They will maintain a set temperature. Once a set temperature is met, the cooled liquid will circulate through the equipment and lower the temperature for the process.
Procerss Chiller Specification
|
Model Parameter |
AGS-120ADH | |
| nominal cooling capacity | kcal/h | 302376 |
| kw | 351.6 | |
| input power | kw | 112 |
| Max. Running current | A | 255.3 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R22 |
| refrigerating circuit | 1 | |
| type of control | expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 47×2 | |
| start-up mode | Y-△ | |
| capacity control | 0-25-50-75-100 | |
| condenser | type | air cooled type finned copper tube |
| cooling air flow (m3/h) | 122000 | |
| power(kw) | 18 | |
| evaporator | type | shell and tube |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 60.5 | |
| inlet and outlet pipe diameter (inch) | 5 | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 3850 |
| Dimension | mm | 4400*2240*2720 |
Inlet chilled fluid temperature:17℃; Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃; Outlet cooling air temperature:35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 30℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The machine can be used while the ambient temperature is below 40℃.
We reserve the right to modify the above dimensions or parameters without further notice.
How to select the model of the chiller ?
