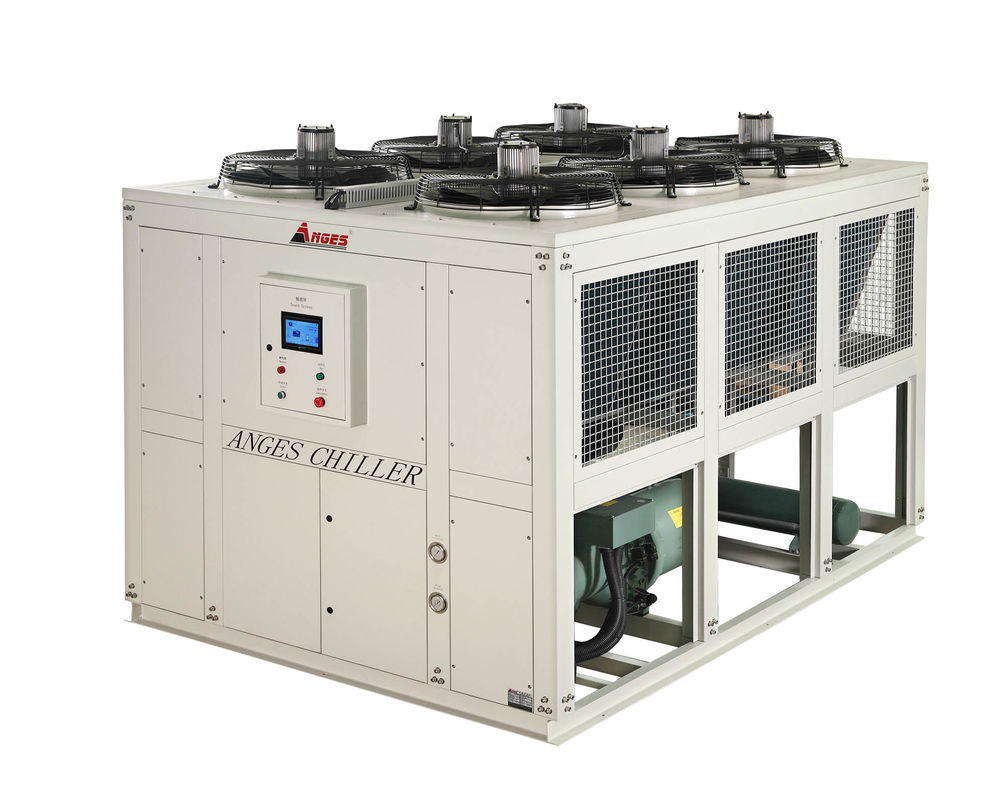

50 Ton Screw Type Industrial Air Cooled Water Chiller 50HP

50 Ton Screw Type Industrial Air Cooled Water Chiller 50HP

Screw Type industrial air cooled water chiller

50 Ton industrial air cooled water chiller

50HP industrial chiller system

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Air-cooled Screw Chiller
Screw Type Chiller
Plastic Injection Moulding Machine
Total Input Power:
Air Cooled Type Finned Copper Tube
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case
Delivery Time
30 days
Payment Terms
T/T, L/C
Product Description

50 Ton Chiller Air Cooled Screw Chiller Process Chiller Central Chiller Cooling System Chiller Manufacturer


In an air-cooled chiller, hot refrigerant entering the copper tube fin condenser and it is exposed to atmospheric air, there's fan on top of the condenser for heat dissipation. The Air-cooled water chiller doesn't need cooling tower for operation, easier for installation and lower maintenance cost,due to no water treatment requirements. they are often a preferred choice especially in locations that water is shortage or very expensive.


Air- cooled Screw Chiller Specification


nominal cooling capacity kcal/h 141040
kw 164
input power kw 56
Max. Running current A 127.6
power supply 3PH~380V/50HZ
refrigerant type R22
refrigerating circuit 1
type of control thermostatic expansion valve
compressor type semi-hermetic screw
quantity 1
Power 47
start-up mode Y-△
capacity control 0-33-66-100
condenser type air cooled type finned copper tube
cooling air flow (m3/h) 51000
power(kw) 9
evaporator type shell and tube
quantity 1
chilled fluid flow (m3/h) 28.2
inlet and outlet pipe diameter (inch) 3
safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
net weight kg 1620
Dimension mm 2400*1760*2180



































Screw Chiller Features:

  1. Adopting high-efficiency and energy-saving compressors of world class grade brands, high-quality condensers and evaporators, high cooling efficiency, stable performance, low noise and long service life.
  2. The control system is adopting Siemens PLC controller and LCD touch screen , accurately controls the cooling capacity and cooling load of the unit in real time to achieve the best matching state, to ensure that the unit runs at the best efficiency and to reduce operating costs.
  3. Capacity control can adopt four-stage (100%-75%-50%-25%), three-stage (100%-66%-33%) or stepless control system.
  4. High-efficiency internally threaded copper pipes enhance the heat transfer effect and are more energy-efficient and efficient.
  5. Convenience of installation and service.This air cooled central no need cooling tower installation, and water treatment, chiller condenser-tube cleaning, tower mechanical maintenance.

Difference between screw chiller and scroll chiller
The two types of air cooled chillers are scroll compressor air cooled chillers and screw compressor air cooled chillers. Scroll compressors are used for the smaller air cooled chillers, and screw compressors are used for larger air cooled chillers and have a variable speed drive option for increased efficiency.


How to select the model of the chiller ?

  • We need to know the heat load of your process or chiller cooling capacity.
  • Required water temperature, water pressure and flow rate.
  • Application and power supply in local.
  • Max. Ambient temperature in summer day
  • Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
