40RT Glycol Chiller Energy Efficient Scroll

Glycol Chiller
January 23, 2026
Chat Now Contact Us
Brief: This video explains the main functions and practical uses of the 40RT Air-Cooled Industrial Glycol Chiller in a clear, step-by-step format. You'll see how this energy-efficient scroll type chiller with 4 compressors provides reliable cooling for extrusion machines and other industrial applications. Watch to learn about its operational principles, key technical specifications, and installation advantages.
Related Product Features:
  • Features a nominal cooling capacity of 144.48 kW (124,253 kcal/h) for high-performance industrial cooling applications.
  • Equipped with four energy-efficient hermetic scroll compressors with a total power of 32.4 kW for reliable operation.
  • Utilizes high-efficiency micro channel condenser with low noise outer rotor fans and 50,000 m³/h cooling air flow capacity.
  • Includes shell and tube evaporator with 345L volume and 24.91 m³/h chilled fluid flow rate for optimal heat transfer.
  • Powered by a 4 kW pump with 22m lift capacity to ensure consistent glycol solution circulation throughout the system.
  • Comprehensive safety protection including compressor overheating, over-current, high/low pressure, and phase sequence protection.
  • Compact dimensions of 2300*1800*2150 mm with 1250 kg weight for space-efficient industrial installation.
  • Designed for 3PH 440V 60Hz power supply using R407C refrigerant with thermostatic expansion valve control.
FAQs:
  • How does an air-cooled chiller system work?
    An air-cooled chiller works through two main circulation loops: the process fluid (glycol solution) absorbs heat from industrial equipment, then transfers this heat to the refrigerant loop. The refrigerant carries the heat away and releases it into the ambient air through the condenser, effectively cooling the system without requiring external water sources.
  • What are the main applications for industrial chillers like the 40RT model?
    This industrial chiller is designed for precise temperature control in manufacturing processes including plastic extrusion, injection molding, metalworking, CNC machining, chemical production, pharmaceutical manufacturing, food processing, and cold chain logistics to ensure product quality and equipment protection.
  • What after-sales service is available for this industrial chiller?
    We provide comprehensive after-sales support including 24/7 online technical assistance, video-based troubleshooting guidance, overseas third-party service availability, and timely professional response to ensure optimal chiller performance and minimal downtime.
  • What makes this chiller energy-efficient?
    This chiller features energy-efficient scroll compressors, high-efficiency micro channel condenser technology, and optimized system design that delivers 144.48 kW cooling capacity with only 39.52 kW input power, providing superior performance while minimizing energy consumption.
Related Videos

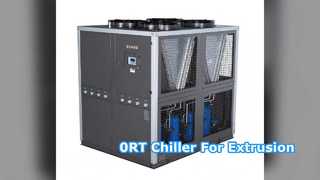

0RT Glycol Chiller for Extrusion Machines 00:06
