Place of Origin:
shenzhen,China
Brand Name:
SZAGS
Certification:
CE and ISO9001
Model Number:
AGS-050ASL
| Model Parameter |
AGS-050ASL | |
| nominal cooling capacity | kcal/h | 36808 |
| kw | 42.8 | |
| input power | kw | 50.02 |
| Max. Running current | A | 114 |
| power supply | 3PH/220~480V/50~60HZ | |
| refrigerant | type | R22/404A |
| refrigerating circuit | 1 | |
| type of control | thermostatic expansion valve | |
| compressor | type | semi-hermetic screw |
| quantity | 1 | |
| Power | 45.4 | |
| start-up mode | Y-△ | |
| capacity control | 0-33-66-100 | |
| condenser | type | air cooled high efficient inner threaded copper tube aluminum fin |
| cooling air flow (m3/h) | 50000 | |
| power(kw) | 3.12 | |
| evaporator | type | shell and tube/plate |
| quantity | 1 | |
| chilled fluid flow (m3/h) | 8 | |
| inlet and outlet pipe diameter (inch) | 3" | |
| safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
| net weight | kg | 1450 |
| Dimension | mm | 2350*1760*2050 |

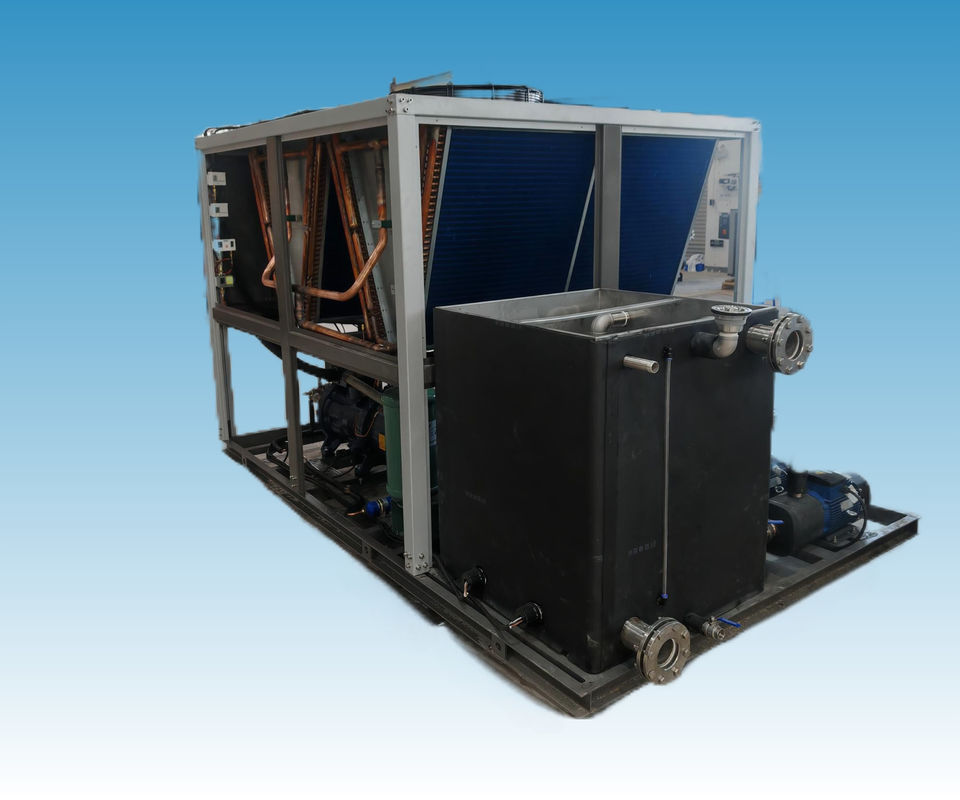

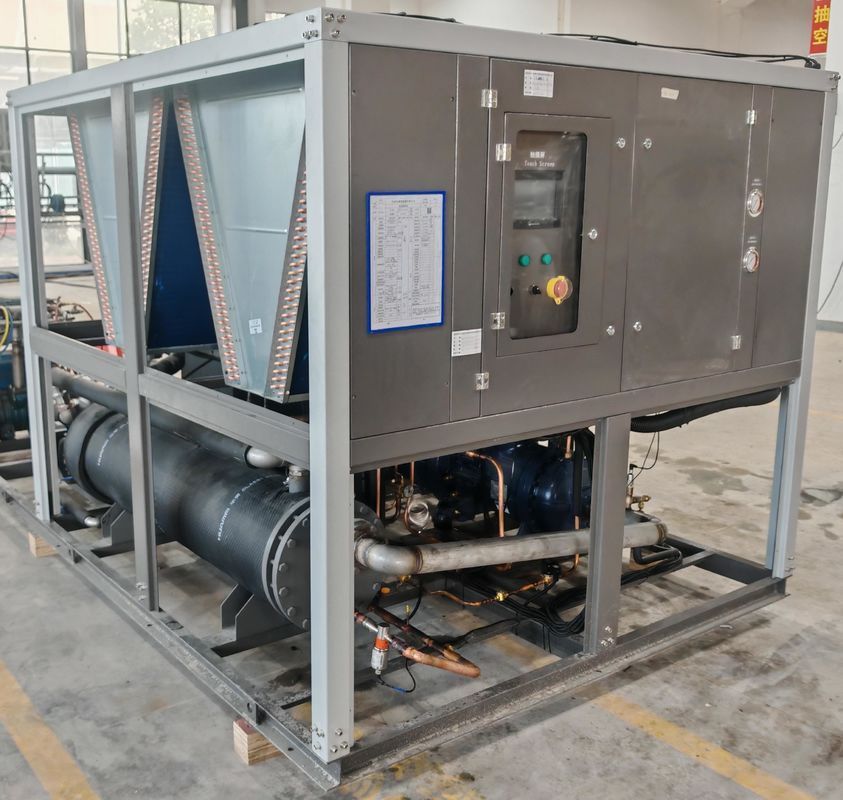

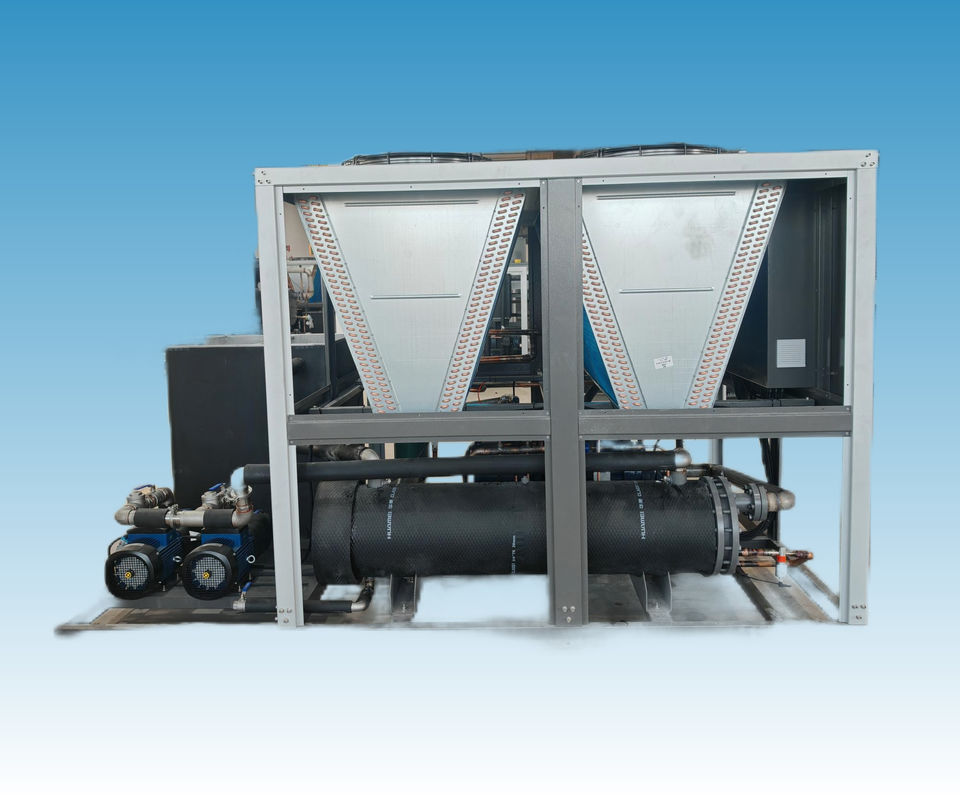

The SZAGS Screw Type Chiller is the perfect solution for your plastics industry needs. It is an energy-efficient cooling device that provides precise temperature control to maintain optimum efficiency. With a cooling capacity ranging from 100-4230kW and a noise level of ≤65dB(A), this chiller ensures reliable and efficient cooling with a 1-year warranty. The condenser and evaporator both use Shell and Tube and Plate Heat Exchanger designs to further enhance the energy-saving capabilities of this product. This Screw Type Chiller is specially designed to be used in the plastics industry to provide energy-efficient cooling solutions.
We provide technical support and service to ensure that our customers have the best experience with our Screw Type Chiller product. Our team of experienced engineers and technicians is available to answer any questions or concerns you may have about the product.
We offer on-site installation and maintenance services to ensure that your Screw Type Chiller is running smoothly and efficiently. Our technicians have the experience and expertise to diagnose any issues quickly and provide solutions that will ensure the optimal performance of your unit.
We also offer a comprehensive warranty package to cover any defects or malfunctions in the product. Our warranty includes parts and labor costs, and we are committed to providing prompt and professional service.
Finally, we offer a variety of customer support options, including phone, email, and online support. Our customer service team is available 24 hours a day, 7 days a week to provide assistance and answer any questions you may have.
