| Brand Name: | ANGES |
| Model Number: | Inverter Chiller |
| MOQ: | 1 |

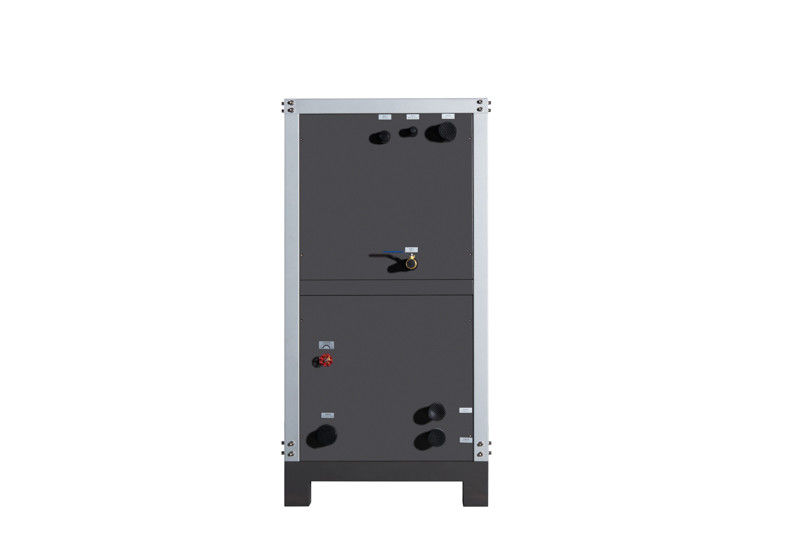

Inverter Type Water Chiller Water Cooled Chiller Portable Chiller 10 Ton Water Chiller VFD Chiller
About the inverter chiller
Inverter Compressor Chiller- Variable frequency, high efficiency,energy saving and consumption reduction.
With Variable Frequency Drive (VFD) technology, chillers are able to match the varying load requirements to control running speed, regardless of requirement. By using the inverter compressor solutions, significant energy savings can be achieved compared to traditional on-off compressors or mechanically-modulated technologies.
Specification
|
lItem |
AWV-10 | |
| Nominal cooling capacity | Low frequency kcal/h | 7393 |
| High frequency kcal/h | 26614 | |
| Low frequency kw | 8.6 | |
| High frequency kw | 30.95 | |
| Input power | Low frequency kw | 3.23 |
| High frequency kw | 7.74 | |
| Power | Variable frequency power supply | |
| Refrigerant | Type | R410a |
| Type of control | Electronic expansion valve | |

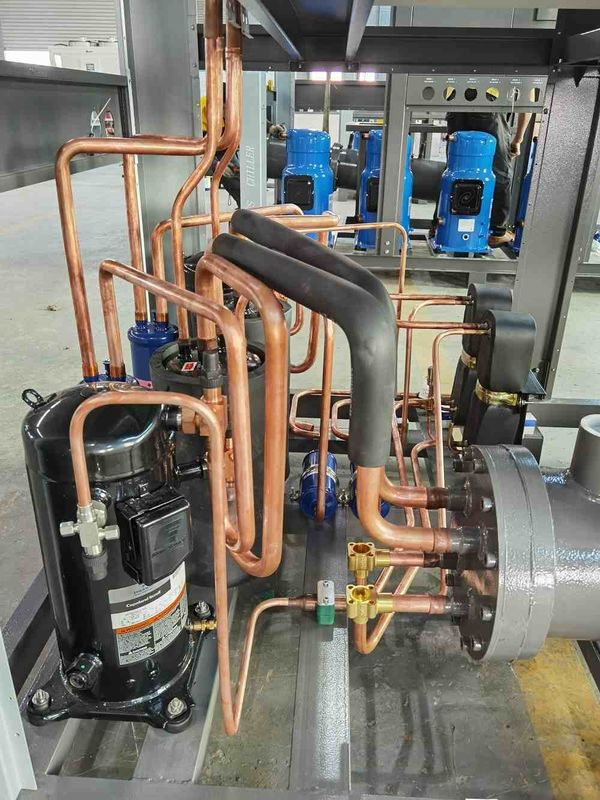

| Compressor | Type | Hermetic motor driven compressor |
| Low frequency power( kw) | 1.73 | |
| High frequency power (kw) | 6.24 | |
| Condenser | Type | Shell and tube |
| Cooling water flow (m3/h) | 6.4 | |
| Inlet and outlet pipe caliber(inch) | 1-1/2 | |

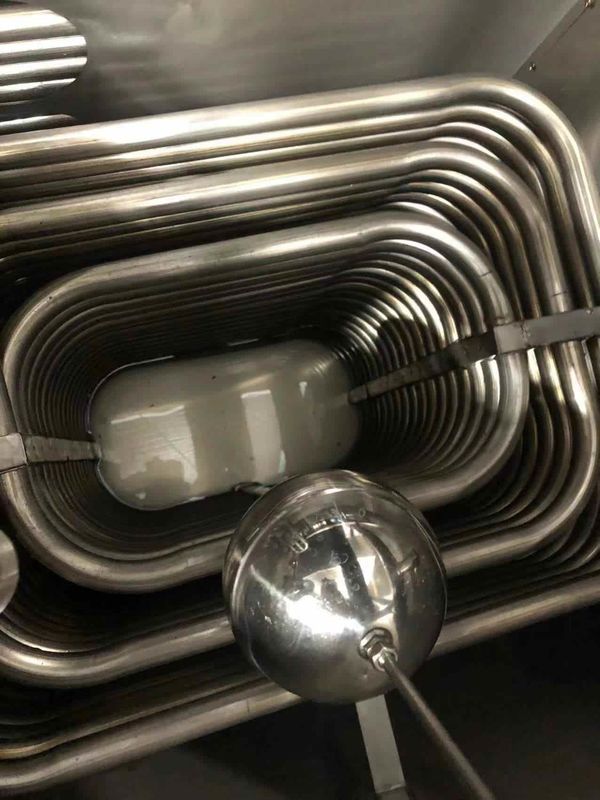

| Evaporator | Type | Water tank with coil |
| Chilled water flow (m3/h) | 5.3 | |
| T | Tank volume(L) | 180 |
| Inlet and outlet pipe caliber(inch) | 1-1/2 | |

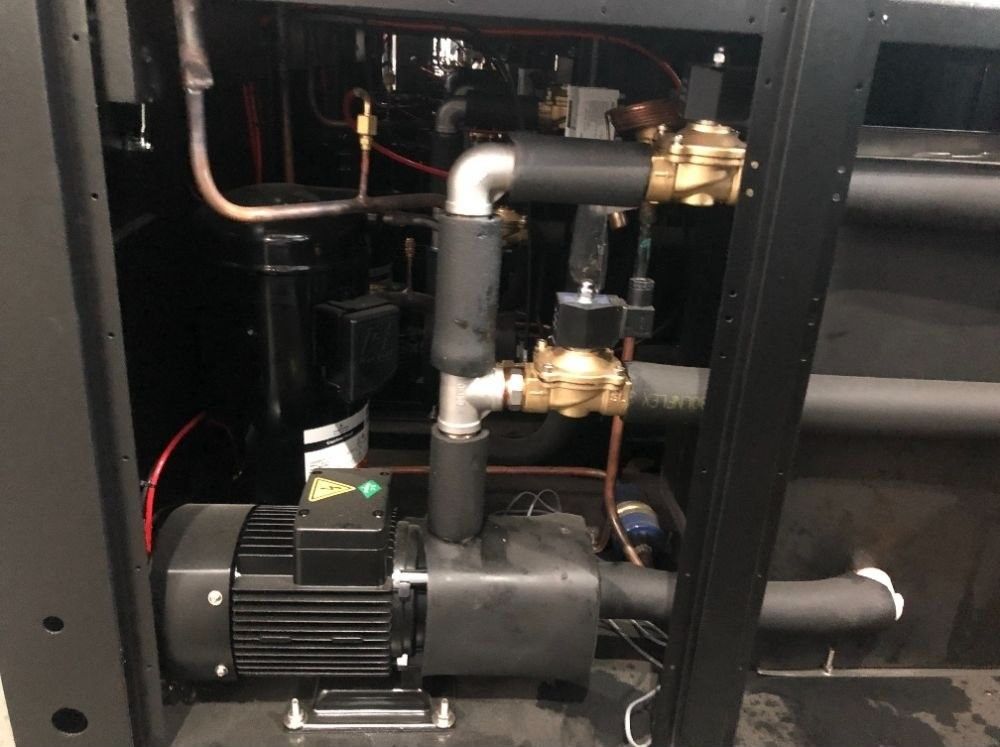

| Pump | Power (kw) | 1.5 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing | |
| Dimension | mm | 1320*710*1320 |
| Weight | kg | 430 |
Features and benefits
Chiller service
We are industrial chiller manufacturer, chiller service can be online support, video technical support, site service in some areas are available.
Site service will be done by our water chiller distributor, Indonesia, Philippines, Thailand, Singapore, Malaysia, Australia, United States, Israel, Egypt and so on.
What we will do before chiller delivery ?
1.After industrial chiller assembly, we will charge nitrogen for pressure maintaining testing for 24hrs, to check whether there is leakage in the chiller cooling system.
2.Drain the nitrogen,vacuum the chiller system and set up parameters, then power on chiller and charge refrigerant at the same time.
3.Debug and test the chiller unit.
4.After the chiller commissioning, cleaning and labelling chiller unit, then have pre-delivery inspection before packing with plywood cases to to ensure that the chiller can be in good condition during transit.
|
|
