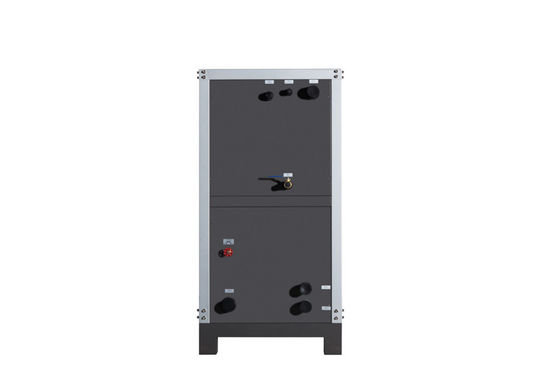

3hp Small Industrial Chiller

Place of Origin China
Brand Name ANGES
Model Number 3tr
Minimum Order Quantity 1
Packaging Details Plywood case
Delivery Time 25 days
Payment Terms T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Compressor Type Hermetic Scroll Compressor Power 3tr
Cooling Capacity 10.4 Kw Type Water-cooled Type
Pump Pressure 2 Bar Water Tank Material Stainless Steel
Original Shenzhen China Manufacturer Packages Plywood Case
High Light

3hp small industrial chiller


3tr small industrial chiller


3hp small industrial water chiller

Leave a Message
Product Description

3ton Water Cooled Chiller 3hp Plastic Process Water Chiller Energy Saving Water-Cooled Chiller Small Scroll Chiller


Why use a chiller for your Injection Molding Process?
Industrial chiller is a refrigeration system used to lower the temperature of production process.In the injection moulding process,water chiller can maintains a constant and proper cooling temperature in your process equipment which will reduce the cooling time in the mold and preserve the quality of your products.


Water-cooled chiller for plastic industry process application

Water-cooled chillers are generally more efficient than air-cooled chillers.They have a quieter operation than air-cooled systems and won't heat up the workshop.So it can be installed beside the each plastic machine for easier installation and operation.

Plastic injection molding is one of the crucial manufacturing process.The high efficient industrial water chiller can greatly reduce the amount of time spent on each batch in the injection molding process.Anges chillers from 5hp to 60hp are popular for plastic injection molding, blow molding ,PET preform, plastic extruder and so on.For example, water chiller 5ton is available for about 350ton injection machine.


Specification for Small Water Cooled Chiller System


nominal cooling capacity Kcal/h 8944
  kw 10.4
input power kw 2.47
power supply 3PH~380V/50HZ
refrigerant type R22
  type of control Capillary
compressor type Hermetic scroll type
  Power (kw) 2.1
condenser type Shell and tube
  Cooling water flow(m3/h) 2.2
  Inlet/outlet pipe caliber(inch) 1
evaporator type Shell and tube
  Chilled water flow(m3/h) 1.8
  Tank volume(L) 60
  Inlet/outlet pipe chiller(inch) 1
Water pump Power(KW) 0.37
  Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
net weight kg 170
Dimension mm 1250*600*120


Featurers for small water cooled scroll chiller
  1. This 3Tr water chiller use famous brand scroll compressor.The scroll compressor has the advantages of small volume, low noise, light weight, small vibration, low energy consumption, long life and reliable operation.
  2. High efficient shell and tube type evaporator,built-in stainless steel 304 water tank,easy to install and use.
  3. The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
  4. This industrial water-cooled chiller equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-30C.
  5. This chiller protection system includeds compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.

Water chiller service from manufacturer

Anges is specialized in producing industrial chiller since 2004, to provide flexible cooling solutions for all industries through the use of high quality components. We serve plastic processing, food & beverage & metal finishing industries and much more.Our water chiller cooling capacity is from 3kw -180kw, water outlet temperature is from -40 to +30 ℃. We can provide on-site service by our agents or partnersin some countries to provide quick and convenient service to our clients, Indonesia, Philippines, Thailand, Singapore, Australia, USA, Mexico, Morocco and so on,

  1. All the chillers are provided with 12 months free maintenance service.
  2. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
  3. All the chillers are provided with 12 months free maintenance service.
  4. Provide technical explanation, chiller debugging support, technical training and chiller maintenance guidance.
  5. If necessary, after-sales engineers can be on-site service confirmed by both parties through communication .In some areas, local dealers can provide fast and convenient service.
  6. Chiller maintenance service outside the warranty period, life-long tracking maintenance, cost price to provide equipment parts.
