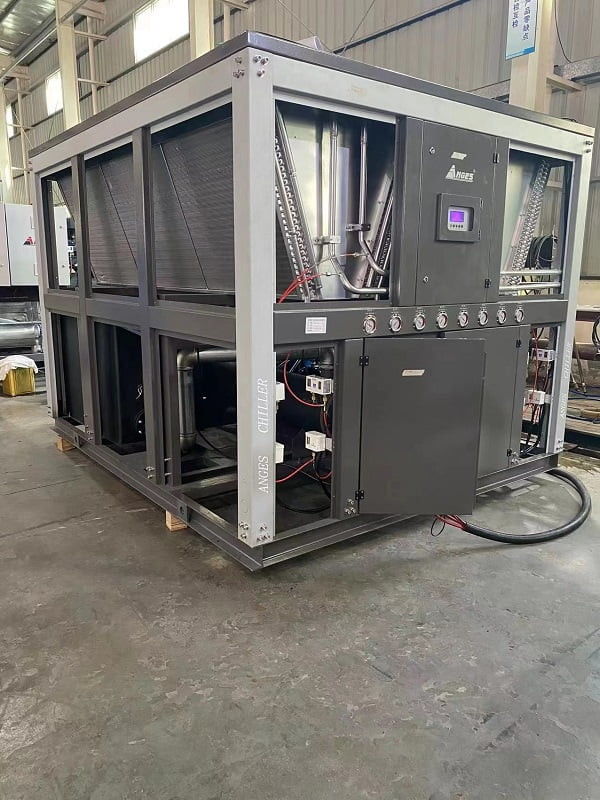

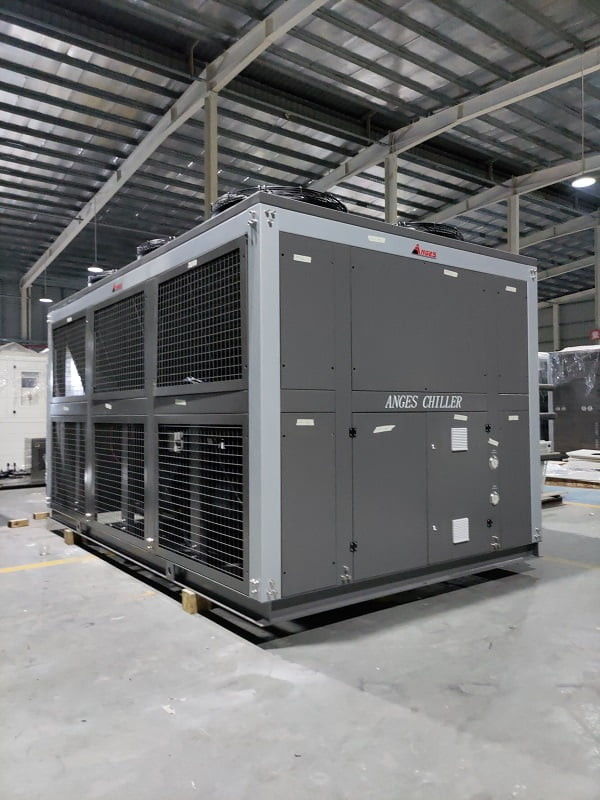

40HP Air Cooled Screw Chiller

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | Brandnew | Warranty | 12 Months |
---|---|---|---|
Voltage | 3PH~220V/380/415V~50HZ/60HZ | Cooling Capacity | 40 Ton |
Compressor Type | Semi-hermetic Screw | Evaporator | Shell And Tube |
Condenser | Aluminum Finned Copper Tube + Axil Fan | Refrigerant | R22, R134a, R407C |
High Light | 40tr Air Cooled Screw Chiller,40HP Air Cooled Screw Chiller,40HP water cooler industrial |
40tr Water Chiller Air Cooled Screw Chiller Central Chiller Water Chiller Manufacturers Refrigerator Chiller System
Some distinctive features of Air-cooled screw type chillers
- The screw type chillers have simple structure, fewer moving parts and wear parts, ensuring less noise and more reliable operation.
- Stepless variable-speed control can be achieved within a range of 10%-100%, improving energy efficiency.
- The screw type chiller is designed to be easy to operate ,microcomputer humanized control, the operation procedure is clear at a glance.
Model Parameter |
AGS-040ASH | |
nominal cooling capacity | kcal/h | 107156 |
kw | 124.6 | |
input power | kw | 44 |
Max. Running current | A | 99.8 |
power supply | 3PH~380V/50HZ | |
refrigerant | type | R22 |
refrigerating circuit | 1 | |
type of control | thermostatic expansion valve | |
compressor | type | semi-hermetic screw |
quantity | 1 | |
Power | 37.4 | |
start-up mode | Y-△ | |
capacity control | 0-33-66-100 | |
condenser | type | air cooled type finned copper tube |
cooling air flow (m3/h) | 40000 | |
power(kw) | 6.4 | |
evaporator | type | shell and tube |
quantity | 1 | |
chilled fluid flow (m3/h) | 21.4 | |
inlet and outlet pipe diameter (inch) | 3 | |
safety protection | compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing | |
net weight | kg | 1300 |
Dimension | mm | 2200*1560*2150 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature:17℃, Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃, Outlet cooling air temperature:35℃
The temperature range of chilled fluid is from 5℃ to 30℃
Features of water-cooled water screw chillers
- Anges Air cooled screw chillers are large cooling capacity from 140kwand 760kw. Wide range of variable chilled water temperature to meet the industrial requirements of 5℃-30℃.
- High efficient shell and tube type evaporator to connect with large water tank directly.
- The shell and tube condenser is low condensing temperature, good cooling effect, suitable for medium and large refrigeration system.It can run easily even in hot weather.
- Screw chiller are tested befor shippment to verify its operational reliability and to ensure a smooth startup
- Use PLC microcomputer control and touch screen with English operation interface.
- Friendly environmentally refrigerant R407C or R134A are available.Chiller with R134a can be available for ambient temperature above 45 ℃.
- Complete safety devices are equipped ,including compressor over temperature, over current, high and low pressure, over temperature, flow switch, etc.
Benefits
- High efficiency chiller units engineered for heavy-duty industrial applications.
- The integral programmable control system assures reliable operation and temperature control under the most demanding conditions and extreme environments.
- Easy to install and use, our chillers come with a wide range of cooling temperatures.
- Chillers can decrease equipment depreciation and degradation to cut down on operating expenditures.
- The design is very compact and made of high-grade materials. It has stronger durability and longer service life. It does not need any kind of repair and replacement for a long time, which can save cost.
How to select the model of the chiller ?
- We need to know the heat load of your process or chiller cooling capacity.
- Required water temperature, water pressure and flow rate.
- Application and power supply in local.
- Max. Ambient temperature in summer day
- Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.
